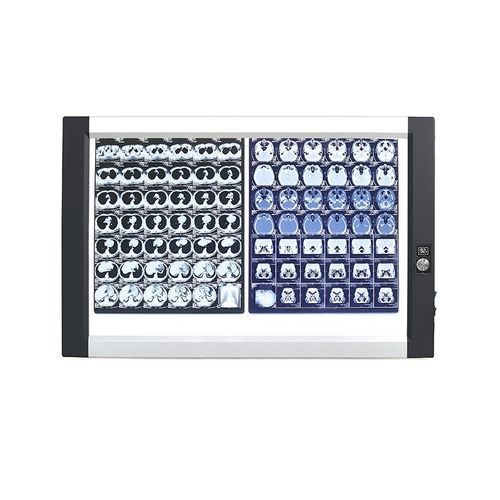

2-screen X-ray film viewer DQ-2B

LEDadjustable brightness

Overview
Double wall-mounted LED X-ray film viewer designed for diagnostic imaging. Provides even illumination across the viewing area with adjustable brightness and long LED lifetime.

Key features

• Two-panel (double) wall-mounted configuration for simultaneous film comparison
• LED light source with stable, even illumination
• PWM dimming system for continuous brightness control (1%–100%)

Technical specifications

• Model No: DQ-2B
• View panel: PWM dimming, continuous modulation 1%–100%
• Luminance: 0–4500 cd/m2
• Brightness uniformity: ≥90%
• LED lifetime: 100,000 hrs
• Color temperature: 4000–5000 K
• External size (L×W×H): 860 × 510 × 25 mm
• Visual area size (L×W): 740 × 415 mm
• Max. power: 60 W

Applications & maintenance

• Suitable for radiology departments, diagnostic centres and clinics
• Wall-mounted installation for space-efficient viewing and film comparison
• Low-maintenance LED source and replaceable components for long service life
