Operating table positioning system MKA-036

radiolucentfor spine surgery

Product Introduction

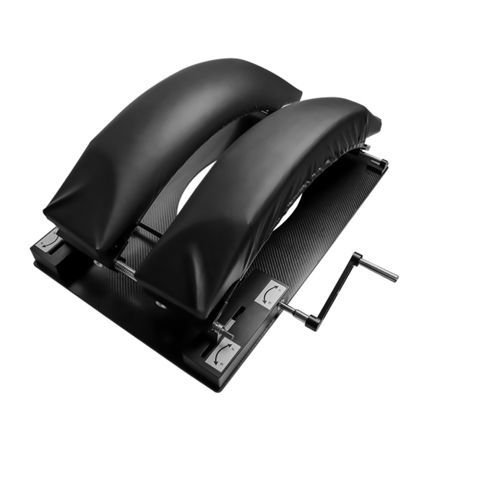

MKA-036 is a carbon fiber open-frame spinal positioning device designed for spine surgery. Joystick controls are positioned on the front, back, left and right to allow precise, rapid adjustments during procedures while maintaining imaging access.

Product Table
Model No: MKA-036
Applicable: Operating table
Dimensions: 740 mm (L) × 500 mm (W)
Minimum height: 240 mm
Maximum height: 310 mm
Lifting range: 70 mm
Maximum width: 485 mm
Minimum width: 300 mm
Width adjustment range: 150 mm
Net weight: 12 kg
Load capacity: 120 kg
Packaging: molded pearl cotton, individual packaging

Overview
The MKA-036 provides stable patient support and unobstructed imaging due to its carbon fiber open-frame construction. Its lightweight structure facilitates handling and reduces interference with imaging modalities. Four-sided joystick control enables multi-directional positioning without repositioning the device.

Technical specifications

• Model: MKA-036
• Applicable to: Operating table
• Overall dimensions: 740 mm (L) × 500 mm (W)
• Height range: minimum 240 mm, maximum 310 mm
• Lifting range: 70 mm
• Width: minimum 300 mm, maximum 485 mm (adjustment range 150 mm)
• Net weight: 12 kg
• Maximum load capacity: 120 kg
• Packaging: molded pearl cotton, individual packaging
• Construction: Carbon fiber open-frame design for reduced weight and imaging compatibility
• Controls: Joysticks located front, back, left and right for multi-directional adjustment
