Veterinary examination lamp JD1000L-B

dentalfor dental officesgynecological

PRODUCT FEATURES

• Micare JD1000L-B digital-control LED examination light designed for clinical use.
• Manufacturer certified to ISO 13485, CE and FDA standards.
• Stepless brightness control via LCD digital interface and tactile ± buttons; replaces analog knob for precise adjustment.
• Seven high-power LEDs delivering up to 90,000 Lux with color temperature 4,300 K and CRI ≥ 90.
• Approx. 50,000 hours LED lifespan and professional optical design for uniform illumination and comfortable positioning.

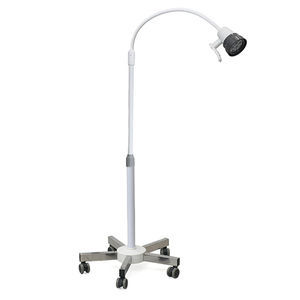

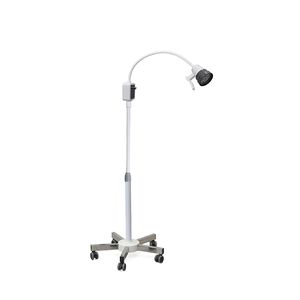

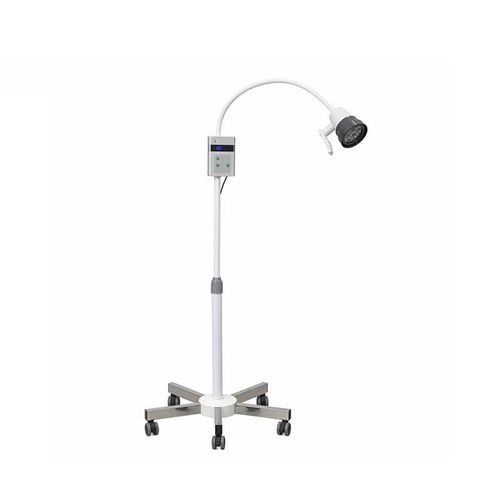

• Supplied on a stainless-steel mobile floor stand with 5-claw base and locking casters; 570 mm gooseneck for flexible aiming.
• Global voltage compatibility (95–245 V, 50/60 Hz) and optional 2-hour battery backup.

APPLICATIONS

• Hospitals and outpatient clinics
• Doctor's offices, dental, ENT, gynecology examinations
• Surgical and minor procedure centers
• Orthopedics and ophthalmology examination rooms
• Veterinary surgery centers and similar clinical environments

PRODUCT INTRODUCTION
JD1000L-B is a digital-control medical LED examination lamp tailored for multi-user clinics and examination rooms. It features an LCD digital display with precision stepless dimming operated by tactile ± buttons, providing accurate and repeatable intensity settings. The lamp head integrates seven high-power LEDs producing up to 90,000 Lux at a color temperature of 4,300 K and a color rendering index (CRI) ≥ 90. The LED module offers an expected service life of approximately 50,000 hours. The unit is mounted on a stainless-steel mobile floor stand with a 5-claw base and locking casters, and a 570 mm gooseneck for flexible positioning; overall height is approximately 1,815 mm. The device accepts global mains voltage (95–245 V, 50/60 Hz), consumes 15 W and can be equipped with an optional 2-hour battery backup for temporary power autonomy.

TECHNICAL DATA
Model No: JD1000-B
Working Voltage: 95-245V, 50/60Hz
Gooseneck Arm: 570 mm
Power: 15 W
Color Temperature: 4300 K
Life of Lamps: ≈ 50,000 hrs
Lamp Bead Amount: 7 pcs

SPECIFICATIONS

• Model: JD1000L-B
• Power consumption: 15 W
• Illuminance: up to 90,000 Lux
• LED quantity: 7 high-power LEDs
• Color temperature: 4,300 K
• Color Rendering Index (CRI): ≥ 90
• LED lifespan: ≈ 50,000 hours
• Working voltage: 95–245 V, 50/60 Hz
• Gooseneck length: 570 mm
• Stand: stainless-steel mobile 5-claw base with locking casters
• Control: LCD digital display with stepless/digital dimming and tactile ± buttons
• Optional: 2-hour battery backup
