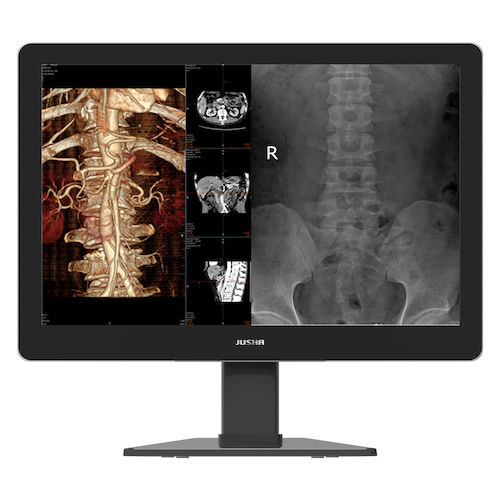

Diagnostic display C630G
mammographyhigh-definition30"

diagnostic display
diagnostic display
diagnostic display
diagnostic display
diagnostic display
diagnostic display
diagnostic display
Add to favorites
Compare this product


Characteristics

Applications
diagnostic, mammography
Resolution
high-definition
Display size
30"
Technology
LED
Aspect ratio
16:10
Input
DisplayPort, DVI
Brightness (cd/m²)

800 cd

Response time

30 ms

Power consumption

110 W, 150 W

Viewing angle

170 °

Weight

12 kg, 16.5 kg
(26.5 lb, 36.4 lb)

Width

477 mm, 567 mm
(18.8 in, 22.3 in)

Height

77 mm, 262 mm
(3 in, 10.3 in)

Description

JUSHA professional display is featured with high resolution, high luminance, 16bit grayscale (65536 grade), built-in LUT based on DICOM standard, designed for high-requirement of clinical diagnosis, such as PACS, Digital Mammography, CR, DR and other x-ray systems. 1. High resolution Jusha report and audit display is paired with 6MP resolution, which can present the medical image precisely. From 1MP DSA image to 5MP mammography, they all can be displayed in the monitor perfectly, and guarantees a good compatibility with wide range of device. 2. High luminance The luminance of JUSHA professional medical display can reach up to 800cd/m2. With the combination of high luminance and great contrast, a significant sense of depth is formed, perfect for locating the nidus. 3. High grayscale The monitor has a 16-bit LUT table, which can express 65536-grade grayscale, and provides a smoother image transition. JUSHA professional display guarantees a perfect presentation of 16-bit high grayscale image captured by high-end equipment. Also, it is helpful to diagnose the early lesion of low contrast with normal tissues. 4. Integrated dual screen With two windows displayed on the same screen, this technology eliminates the inconsistency between the two screens, due to differences in the screen itself or attenuation after longtime usage. More accurate and consistent images could be displayed.

VIDEO

Catalogs

C630G
C630G
2 Pages
