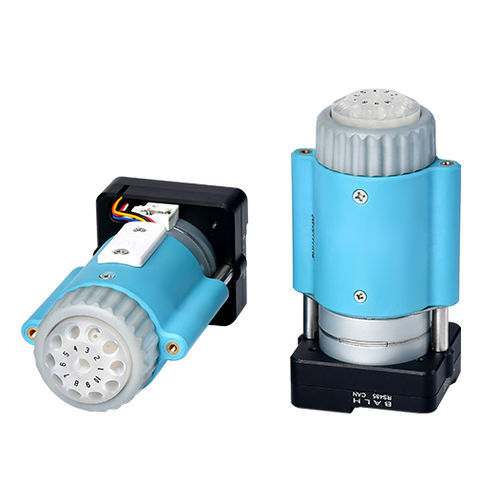

Selector valve SV-04

medical

Smart SV-04 multiport selector valve was equipped RUNZE patented sapphire valve spools with high hardness so as to anti-wear resistance to extend the service life. This multiport selector valve is also biocompatible, corrosion resisting and temperature resisting, small footprint and maintenance-free systems make it widely accepted in a small compact instrument. Wetted material - PCTFE, Sapphire rotor/stator Pressure rating - 0-0.5Mpa (air) / 0-0.6Mpa (water) Origin detection - Auto reset to initial position when powered on (this function can be opened or closed) Liquid temperature - 0-150℃ Connection - 1/4-28UNF Replaceable parts - Stator replaceable, sealed rotor irreplaceable Transposition - Random start to any specific port Driver - Non-optional Valve drive - ≤4s/circle Baud rate - RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps Address & Parameter setting - Via communication Power supply - DC24V/1A Max. power - 22W Operating temperature - 0℃~+50℃ Operating humidity - <80% relative humidity, non-condensing Dimension (L*W*H) - 63.7*50.4*115.2mm Net Weight - 0.437kg
