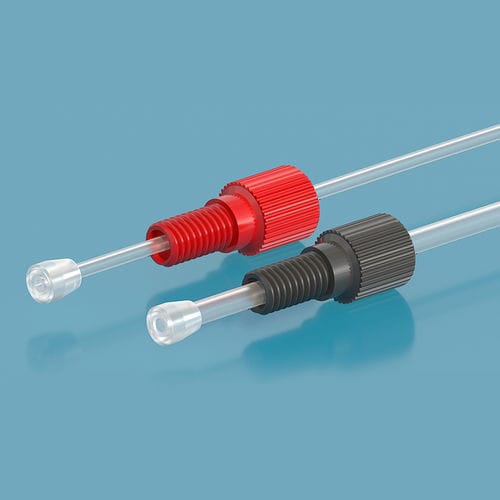

Medical device fitting WD10A-1/4-28-P

Flangeless fittings benefit a lot for low pressure (up to 0.8Mpa) removable and reusable systems. RUNZE offer a variety of nut designs for wide application requirements both on mounting and functioning Flangeless Fittings Features at-a-Glance Resistant to chemical corrosion and various organic substances, PP material Compatible with flat bottom receiving port Finger-tight convenience, no wrenches required Flangeless ferrules provide a leak-proof seal, users no need to spend time flanging tubing Used for standard rigid tubing OD1/16” (1.6mm), 2.0mm, 2.5mm, 3.0mm, 1/8” (3.175mm), 3.2mm Different fitting colors for easy differentiation of flow paths Application Note Step 1. Slide the nut, followed by the ferrule, at least 3/16” (4.7625mm) from the end of clean cut tubing Step 2. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out Step 3. Finger tighten the fittings into the port until snug Step 4. After disassembling, the ferrules should be replaced in next assembly and connection
