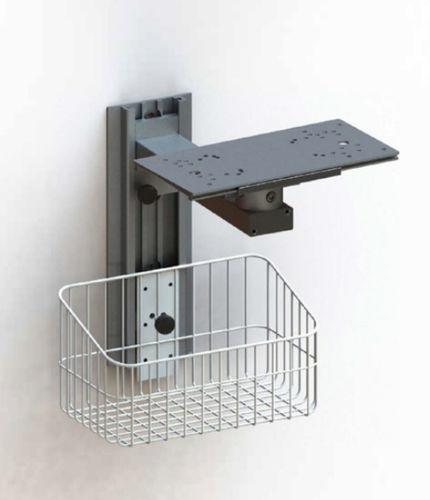

Monitor support arm SW-MT-08

medicalwall-mounted

Product overview
Wall-mounted bracket designed for fixed installation of monitoring instruments and displays. Model SW‑MT‑08 features a removable support plate and adjustable upward tilt from 0° to 15°, with a total height of 350 mm and a load capacity of 15 kg.

Key specifications

• Model: SW‑MT‑08
• Height: 350 mm
• Support plate size: 255 mm × 126 mm × 9.5 mm
• Suspending arm length: 215 mm
• Load capacity: 15 kg
• Adjustable visual/tilt angle: 0°–15° (upward)
• Installation: fixed mounting for monitoring instrument; removable support plate

Installation & compatibility

• Wall-mounted installation; use appropriate anchors and fasteners for the mounting surface (not supplied)
• Compatible with monitoring instruments and displays up to 15 kg and matching support plate dimensions
• Removable plate allows maintenance and replacement without uninstalling the main bracket
• Tilt adjustment enables improved viewing ergonomics on-site

Applications

• Industrial monitoring panels and operator displays
• Control rooms, inspection stations and surveillance installations
• Situations requiring secure wall fixation with limited upward tilt adjustment
