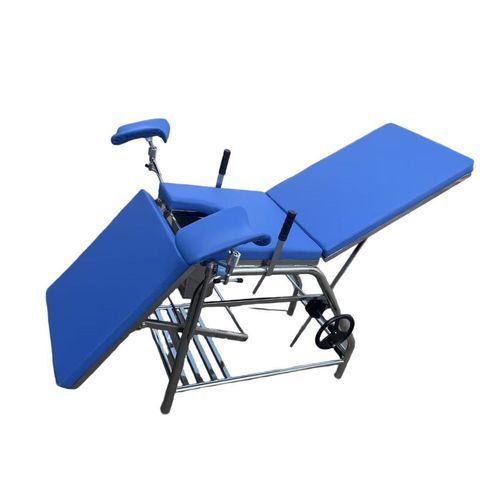

Gynecological operating table 570

mechanicalrecliningstainless steel

Details
This gynecological examination and operating table, Model Manual Operating Table 570, is intended for obstetrics and gynecology departments. It is suitable for clinical examination, diagnosis, gynecological surgery and childbirth. Dimensions: 1910 × 870 mm. Main frame material: stainless steel. Backrest and leg plates are adjustable. Safe working load: 250 kg.

Core features

• Main structure in stainless steel: main tube 38 × 1.2 mm; tabletop tube 25 × 25 × 1.0 mm; legs: 50 × 50 mm stainless steel square tube.
• Tabletop upholstery in synthetic leather with high-density foam for patient positioning and easy cleaning.
• U-shaped cutout 28 × 30 cm to facilitate irrigation and waste disposal.
• Backrest adjustment by handwheel-driven rack and pinion, range 0–45°; leg plates adjustable 0–90°; configurable positions from flat to sitting.
• Safe working load: 250 kg.

Application scenarios

• Obstetrics and gynecology clinical examinations
• Obstetrics and gynecology diagnostics
• Gynecological surgical procedures
• Childbirth
• Gynecological examinations in primary care facilities

Precautions for Use
Before use, inspect the frame, handwheel, rack, backboard, leg plates and footrest for proper function. Do not exceed the safe working load of 250 kg. Monitor patient limb positions when adjusting angles to prevent pinching. Ensure the U-shaped cutout is unobstructed during irrigation and examination. If the handwheel jams, the rack malfunctions or any structural looseness is detected, discontinue use and perform maintenance.

Cleaning & Maintenance
Wipe stainless steel parts with a damp cloth and dry thoroughly. Clean the synthetic leather tabletop with a neutral detergent; avoid strong acids and alkalis. Regularly check the handwheel, rack and connections for looseness. Keep the U-shaped cutout clean and unobstructed. Avoid prolonged exposure to humid environments.

Technical specifications

• Model: Manual Operating Table 570
• Dimensions: 1910 × 870 mm
• Main body material: Stainless steel
• Main tube specification: 38 × 1.2 mm
• Tabletop tube: 25 × 25 × 1.0 mm
• Bed legs: 50 × 50 mm stainless steel square tube
• Tabletop material: Synthetic leather with high-density foam
• U-shaped cutout size: 28 × 30 cm
• Backrest adjustment: Handwheel-driven rack and pinion, 0–45°
• Leg plate adjustment: 0–90°
• Adjustment positions: Flat to sitting position
• Safe working load: 250 kg
