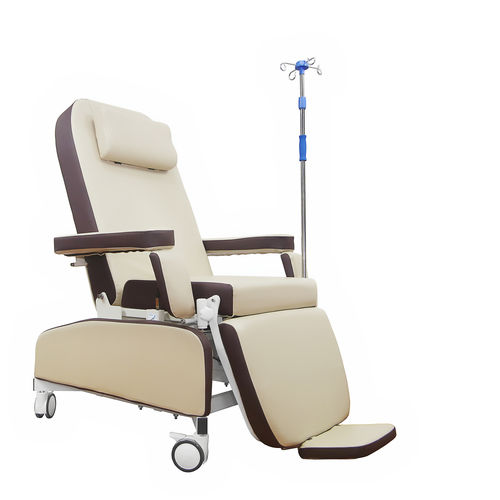

Hydraulic dialysis chair PY-YS

manual3-sectionon casters

Main Structure Manual dialysis chair PY-YS integrates many functions, such as sitting, lying, tilting and reclining. Various positions can be easily realized by adjusting the buttons to meet users' different requirements. Main Product Features Pneumatic and hydraulic adjustment: using reliable gas spring. Multi-position adjustment. Adjusting backrest, legrest and trendelenburg position by gas spring. Humanized design: thoughtful design, fresh color, effectively reduce the tension of patients. Specification Model - PY-YS Total Length - 1960 mm±20mm Total Width including armrests - 930 mm±20mm Seat Width - 600 mm±20mm Backrest lenght - 830 mm±20mm Seat lenght - 520mm±20mm Legrest lenght - 420mm±20mm Seat height - 600mm±20mm Armrest Dimension - L550*W150*D60mm±20mm Height of armrest and seat - 190mm±20mm Chassis Dimension - 930mm×750mm±20mm Castor - 4xφ100mm swivel castors with separate brakes Pillow - 400 mm×230 mm×80 mm±20mm Safe Maximum Load - 240 KGS Weight - 59 KGS±3KGS Food table maximum load - 10 KGS Backrest Adjustment - (-12° ~ 75°)±5° Legrest Adjustment - (-80° ~ 12°)±5° Leather - PVC leather Cushion - Sponge Frame - Q235 steel
