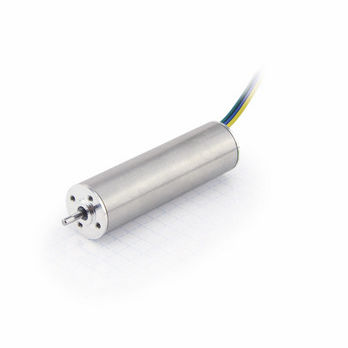

Medical industry motor DS16 seriessensorlessbrushlessDC
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- medical industry
- Operational mode
- brushless, sensorless
- Current type
- DC
- Power
3.7 W, 10 W, 25 W
(0.005 hp, 0.014 hp, 0.034 hp)- Rotational speed
22,000 rpm, 24,000 rpm, 25,000 rpm
(138,230.08 rad.min-1, 150,796.45 rad.min-1, 157,079.63 rad.min-1)
Description
Small BLDC motor for high-speed applications, such as drills, grinders or tattooing instruments. Available in three lengths.
Please note:
The DS16 has no Hall sensors and can therefore be run only in sensorless mode.
The low inductance of slotless motors combined with the PWM frequency of the controller can lead to a very high current ripple, generating additional heat. To prevent this, motor chokes must be installed between controller and motor.
