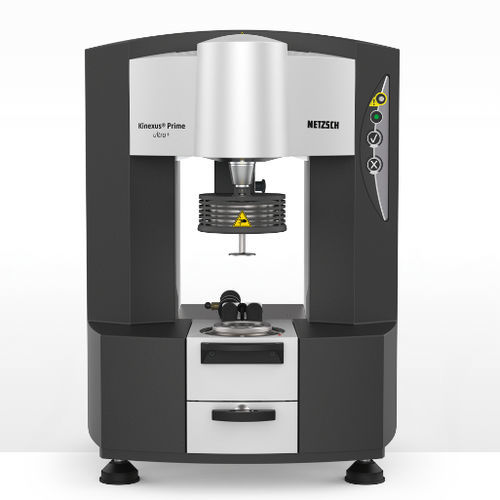

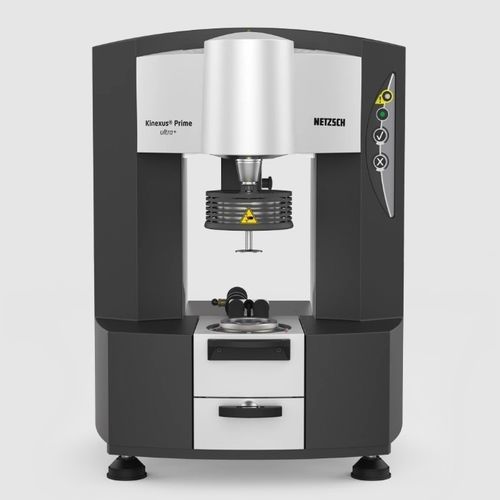

Rotary rheometer Kinexus Prime ultra+

laboratory

The Kinexus Prime ultra+ rheometer has the highest sensitivity air bearing and widest torque range, coupled with the unprecedented vertical (axial) control capabilities of the Kinexus platform, for advanced rheological testing. Unique sequence-driven rSpace software enables fully customizable test design to allow researchers to set-up and investigate tailored rheological test protocols. Method The rotational rheology is a measurement method for determining the flow and deformation properties of materials using rotational movements. A sample is placed between two plates or in a cylindrical measuring system (e.g. a cone-plate system) and subjected to a rotating shear force. By analyzing the resulting shear stress and shear rate, important rheological parameters such as viscosity , elasticity and yield point can be determined. This method is particularly useful for the characterization of liquids, gels, pastes and soft solids in various scientific and industrial applications. Gap Control Exceptional 230 mm vertical travel for maximum user access and setup flexibility Vertical speed range from 0.1 μm/s to 35 mm/s Controllable speed and normal force profiles, including linear, exponential, and limited profiles Gap resolution of 0.1 μm over full range Normal Force Ultra-fast 5 kHz data update rate for all variables, synchronized with rotational and temperature data EasySwap and High Temperature Cartridges Exclusive plug and play cartridge design compatible with the entire Kinexus product line of rotational rheometers EasySwap cartriges feature quick, easy and robust insertion Automatic cartridge recognition and configuration
