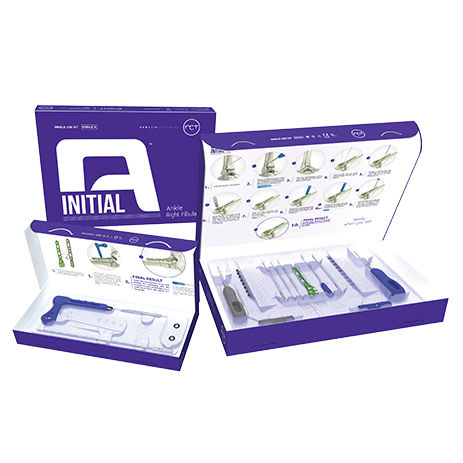

Traumatology instrument kit INITIAL A™

sterilesingle-use

The implants of the Initial A™ are intended for the fixation of fractures, osteotomies and pseudarthroses of the distal fibula, and for syndesmotic repair in adults. KIT COMPOSITION - Instrumentation - Implants: plates and screws IMPLANTS Initial A™ kits are available with the following implants: Plates : 2 types of plates: Standard plates: Size 1 (75 mm), Size 2 (97 mm) and Size 3 (118 mm), green anodized plate for right side, blue anodized plate for left side. Narrow plates : Size 1 (76 mm) and Size 2 (102 mm), green anodized plate for right side, blue anodized plate for left side. Technical features : Precontoured implant, The design of this implant is the result of a proprietary state-of-the-art mapping technology to establish an optimized congruence between the plate and the bone, Dualtec System® 2 Technology : polyaxial locking fixation with an angular range of +/- 10° (20° cone). Fixation : ø2,8 mm Locking screw ø3,5 mm Locking screw ø3,5 mm Standard cortical screw
