X-Ray imaging that is precise, practical and versatile
SIMPLE INSTALLATION, VERSATILITY, RELIABILITY
Features and specs
Thanks to the protractor with graduated scale, arm and tube head positioning is stable, effective and just right for the task. Made of extruded aluminium and featuring an integrated self-balancing device, allowing them to be pointed in 6 directions, the arms cire available in the following lengths: 40,60 and 90 cm, making installation as simple as possible.
Increased X-ray parallelism and an incorporated collimator allow the RXDC to achieve a source-to- skin distance of 30 cm.
The RXDC provides pin-sharp, précisé images with outstanding détail.
A practical, user-friendly handheld unit designed for immediate, précisé X-ray image acquisition, allows easy selection of the most suitable programme. Moreover, it allows users to control the exact emitted dose and the tube température via the sequential exposure graph.

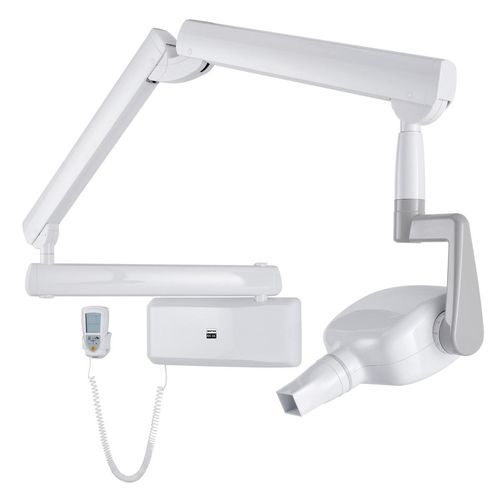

RXDC X-ray unit
Generator Constant potential, microprocessor-controlled
Working frequency 145 ÷ 230 KHz with self-adjustment (typically 175 KHz)
Focal spot 0.4 mm (IEC 336)
Total filtration 2.0 mm Al @ 70kV
Anode current 4 / 8 mA
Voltage at X-ray tube 60 / 65 / 70 kV (*)
Exposure times 0.020 – 1.000 seconds, R’10 and R’20 scale
Source-skin distance 20 and 30 cm
Irradiated field Ø 55 mm and Ø 60 mm round
35 x 45 mm rectangular, 31 x 41 mm and 22 x 35 mm, for sensors size 2 and size 1
Power supply 50/60 Hz, 115-120Vac ±10% or 230-240Vac ±10%
Duty Cycle Continuous operation with self-adjustment up to 1s/90s total
