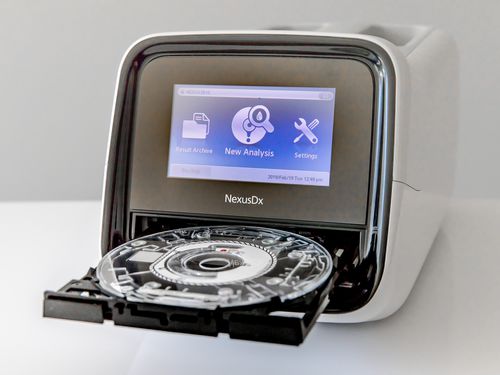

Automatic immunoassay analyzer NEXUS IB10

for clinical diagnosticsample preparationmicrofluidic

Nexus IB10 is a high quality, rapid point of care instrument that is easy to use for clinicians who need to make decisions in a high stress, complex environment, providing test results in 20 minutes. The IB10 has an innovative design making all steps easy for the end user. The Nexus IB10 is an immunoanalyzer that quantitatively measures in-vitro antigens or antibodies in whole blood or plasma samples on a dedicated test disc. The Nexus IB10 system combines chemistry with microfluidics and centrifugal flow to separate cell free plasma from whole blood. The plasma then moves through a channel, mixes with immunoconjugates, and is quantitatively measured. The automated testing process allows fast, accurate test results with minimal maintenance. ✔ An intuitive user interface with minimal interaction from the user. ✔ Small footprint for optimal space utilization ✔ Built in self-test feature minimizes hands on maintenance ✔ No sample preparation needed. Blood separation takes place in the Nexus IB10 instrument. ✔ Test discs stable at room temperature for 30 days ✔ Connects to Laboratory Information Management System (LIMS) ✔ Built-in thermal printer ✔ Wi-Fi and barcode reader capability ✔ An optional smart battery pack can be installed Consumable Disc The sphingotest® disc combines chemistry with centrifugal microfluidic flow to rapidly prepare cell free plasma from whole blood, which can then flow through a channel to rehydrate, solubilize and mix with freeze dried immunoconjugates. Using a combination of active flow and capillary action,
