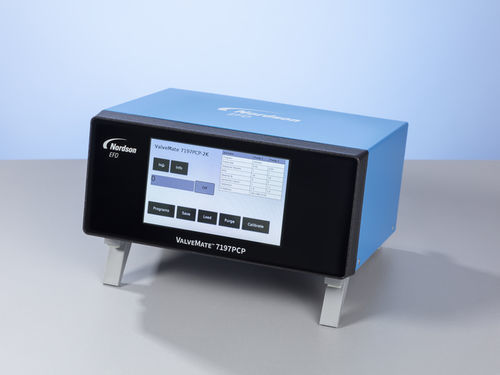

Pump controller ValveMate 2K

with touchscreen

High-resolution touchscreen programming for 797PCP-2K series progressive cavity pumps provides intuitive adjustment of meter mix dispensing parameters. Nordson's EFD ValveMate™ 7197PCP-2K controllers allow operators to choose between Line, Volume, Weight, Instruction, or Timed programming modes from an easy-to-use touchscreen interface. This enables on-the-fly programming of 797PCP-2K volumetric pumps at factory workstations. The 7197PCP-2K controller can be used to meet a wide range of two-component (2K) dispensing applications with deposit volume accuracy and repeatability of +/- 1%. Precisely measure the exact ratios of part A and part B materials through EFD static mixers for improved mix quality and bond strength. As a single-source provider of progressive cavity pumps, controllers, dispensing robots, fluid reservoirs, and disposable static mixers, Nordson EFD offers a total system solution. Features & Benefits - Multiple modes allow exact adjustment of dispensing parameters and mix ratios up to 20:1 - Total system solution simplifies setup and delivers industry-leading performance Part Numbers - ValveMate PCP-2K Pump Controllers - Part #: 7364177 - Description: ValveMate 7197PCP-2K Controller - Specification: 797PCP-2K Pumps Technical Specifications / Features - High-resolution touchscreen interface - Supports Line, Volume, Weight, Instruction, or Timed programming modes - On-the-fly programming for 797PCP-2K volumetric pumps - Deposit volume accuracy and repeatability: +/- 1% - Supports two-component (2K) dispensing applications - Compatible with EFD static mixers for improved mix quality - Mix ratios up to 20:1 - Part number: 7364177 - Compatible with 797PCP-2K pumps
