Punch PerfectCut®

Overview
For vascular and cardiothoracic surgeons, aortic punches are precision instruments for creating uniform anastomotic openings for vein and arterial grafts. The PerfectCut® and CleanCut® series provide rotating, self-aligning cutting mechanisms to reduce insertion force and eliminate lateral side notches while producing consistent circular openings.

PerfectCut® Aortotomy System
The system uses a rotating bullet‑tip punch combined with an aortic lancet. The lancet has a retractable blade shield to form precise crisscross incisions, and the bullet‑tip punch allows straight insertion without a button‑hole technique. The self‑aligning design minimizes jamming during use.

Features & Benefits

• Rotating cutting action reduces required insertion force and minimizes tissue shearing
• Self‑aligning cutter mechanism decreases risk of mechanical jamming
• Produces uniform, repeatable circular openings at anastomotic sites
• Available in multiple diameters to match graft and vessel size
• Ergonomic thumb rest and robust construction for controlled handling
• Materials: medical‑grade stainless steel and thermoplastic components
• Made in the USA

Why the PerfectCut® / CleanCut® Series?

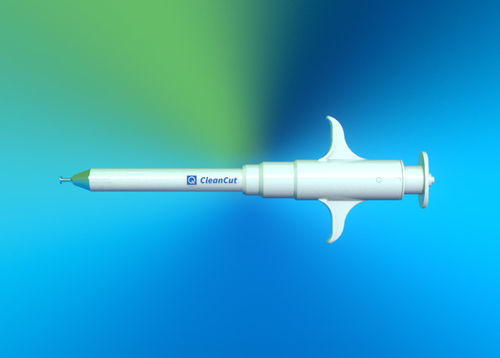

Both series employ rotating cutting action to deliver consistent aortotomy openings. CleanCut® features a flat‑style anvil tip and offers several handle length options; PerfectCut® uses a bullet‑style tip optimized for straight insertion and reduced side notches.

Availability
Offered sterile or non‑sterile through manufacturers and surgical procedure kit suppliers.

Two-step usage

• Step 1: Use the aortic lancet to create precise crisscross incisions
• Step 2: Insert the bullet‑tip punch straight into the incision to create the final circular opening

Specifications / Technical details

• Series: PerfectCut® and CleanCut®
• Materials: medical‑grade stainless steel and thermoplastic
• Manufacturing origin: Made in the USA
• PerfectCut® Rotating Bullet‑Tip Punch — Overall length: 8" (20 cm)
• Available diameters (PerfectCut®): 4.0 mm, 4.5 mm, 4.8 mm, 5.0 mm
• CleanCut® Available diameters: 2.8 mm, 3.5 mm, 4.0 mm, 4.5 mm, 4.8 mm, 5.0 mm
• PerfectCut® Aortic Lancet — Blade: 10 x 3.3 mm with retractable blade shield
• PerfectCut® Aortic Lancet — Overall length: 6.5" (16.5 cm)
• CleanCut® Handle length options: RCC: 6.75" (17 cm); RCL: 8" (20 cm)
• Design: rotating, self‑aligning cutter mechanism; reduces insertion force and lateral notches
• Intended use: creation of uniform openings at aortotomy/anastomotic sites for vessel grafts
