6-way infusion manifold Multiport®

one-wayintensive careanesthesiology

Overview
IV manifold sets provide controlled delivery of infusion therapy with minimal priming volumes and support for high flow rates. The product family includes multiple tubing sizes, rigid and flexible configurations, and component options intended to support safe medication administration in acute care settings.

Multiport® Manifold Sets

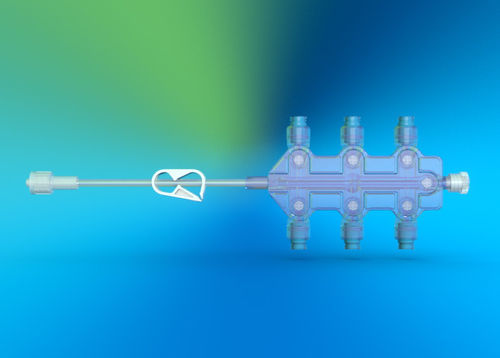

The Multiport® manifold features six ports, seven gravity-activated check valves and an on/off pinch clamp. It is engineered to reduce procedural risk and streamline bedside workflows with the following characteristics:

• A closed system designed to reduce contamination risk and maintain a sterile fluid path
• Q2® fluid delivery components configured to simplify medication administration
• Straight, direct fluid pathways to optimize flushing and reduce retention
• Low residual volume / minimal dead space
• Neutral fluid displacement during connection and disconnection
• Q2® check valves providing one-way delivery to prevent retrograde flow

Controlling Infection Rates (Q2® Engineering)
Q2® split-septum needle-free connectors deliver engineering controls that help isolate or remove the hazard of bloodborne pathogen exposure. These device-level controls, combined with work practice controls, contribute to reducing exposure risk and support compliance with recognized infection-prevention methods.

Applications
IV manifolds are intended for infusion therapy in cardiac surgery, anesthesia and critical care environments.

References

• Closed catheter access systems are associated with fewer catheter-related bloodstream infections (CRBSIs) compared with open systems (see relevant CDC guidance).
• Lyka® PORT is FDA 510(k) cleared for use with vascular access devices in hemodialysis or as an accessory to an I.V. set; authorized for use in patient populations including very low birth-weight infants, infants, children and adults for up to 7 days.
• Guidelines for the Prevention of Intravascular Catheter-Related Infections, CDC, 2011.

For complete indications, contraindications, warnings, precautions, and potential adverse events
Refer to the product Instructions for Use (IFU).

Technical specifications

• Ports: Six ports
• Check valves: Seven gravity-activated check valves
• Clamp: On/off pinch clamp included
• System type: Closed system to reduce contamination risk
• Valve technology: Q2® check valves for one-way fluid delivery
• Fluid pathway: Straight, direct pathways for optimum flushing
• Residual volume: Low residual volume / minimal dead space
• Fluid displacement: Neutral fluid displacement when attaching/detaching
• Performance: Designed for minimal priming volumes and high flow rates
• Configurations: Multiple tubing sizes; rigid and flexible variations; component options available
