Dilatation catheter

blood vesselballoondrug eluting

Overview
Nordson MEDICAL designs, develops and manufactures medical balloons with fully integrated in-house capabilities: extrusion, tooling design, manufacturing and testing. The company supports rapid prototype-to-production transition and high-volume manufacturing.

Key attributes

• Complex geometries: multi‑lumen, bent, offset and stepped designs
• Wall constructions from ultra‑thin to thick; non‑compliant to highly compliant
• Material options: PET, Nylon, Polyurethane and other thermoplastic elastomers
• Coating options: hydrophilic/hydrophobic, antithrombogenic, abrasion‑resistant, drug‑release, conductive, reflective

Applications

• Dilatation: high‑pressure balloons for lumen dilation (including coronary, esophageal, ureteral and valvular applications)
• Stent delivery: low‑compliance, high‑pressure balloons for stent deployment and post‑dilation
• Positioning: offset/asymmetric and dog‑bone shapes for targeted device alignment in complex anatomy
• Occlusion: low‑pressure elastomeric balloons for cavity filling and temporary occlusion
• Endovascular graft delivery: balloons to deploy and secure grafts to vessel walls
• Energy & light delivery: ultra‑thin wall and optically clear balloons for thermal or photonic therapies
• Drug delivery: dual‑balloon or sealing shapes for localized therapeutic delivery

Types and specifications
Non‑Compliant Dilatation Balloons

• Characteristics: ultra‑high strength, thin walls
• Materials: PET
• Compliance: ~0%–10%
• Light transmission: transmits broad spectra including Nd:YAG
• Sizes: Ø 0.5 mm–80 mm; length up to 15" (virtually any length within design limits)
• Burst pressure: ~15 psi–400 psi (1 atm–27 atm)
• Coatings: available

Semi‑Compliant Dilatation Balloons

• Characteristics: high strength, thin walls
• Materials: PET, Nylon, Polyurethane, other TPEs
• Compliance: ~10%–20%
• Sizes: Ø 0.5 mm–50 mm; length up to 15"
• Burst pressure: ~15 psi–375 psi (1 atm–25.5 atm)
• Coatings: available

Compliant Balloons

• Characteristics: low‑pressure, thin to thick walls designed for volume response
• Materials: Polyurethane, Nylon elastomers, other TPEs
• Compliance: ~20%–200%+
• Sizes: Ø 0.5 mm–80 mm; length up to 15"
• Burst pressure: ~0 psi–30 psi (0 atm–2 atm)
• Coatings: available

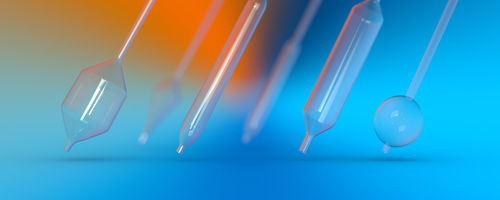

Medical balloon shapes

• Standard, conical, square, spherical, elliptical
• Long conical/square, tapered, dog‑bone, stepped, offset
• Custom shapes on request

Standard balloon ends and necks

• Conical sharp corner, conical radius corner
• Square end, spherical end
• Offset neck, custom ends and necks

Coatings
Surface treatments to modify friction, durability, biocompatibility and functionality, including hydrophilic/hydrophobic lubricious coatings, abrasion‑ and puncture‑resistant layers, tacky/high‑friction coatings, conductive and antithrombogenic finishes, drug‑release and reflective coatings.

Technical specifications

• Materials: PET, Nylon, Polyurethane, other thermoplastic elastomers
• Diameter range: 0.5 mm to 80 mm
• Maximum practical length: up to 15" (design‑dependent)
• Compliance classes: non‑compliant (~0%–10%), semi‑compliant (~10%–20%), compliant (~20%–200%+)
• Burst pressure range: near 0 psi up to ~400 psi (0 atm–27 atm) depending on type
• Coating options: hydrophilic/hydrophobic, abrasion/puncture resistant, antithrombogenic, drug‑release, conductive, reflective
• Design options: multi‑lumen, bent, dog‑bone, offset, stepped, tapered, custom geometries
• Manufacturing: fully integrated in‑house extrusion, tooling, manufacturing and testing
• Production capacity: high volume (over one million balloons annually); rapid prototype‑to‑production capability
• Typical lead times: custom designs can be produced rapidly; some configurations achievable in as little as two weeks subject to design and validation
