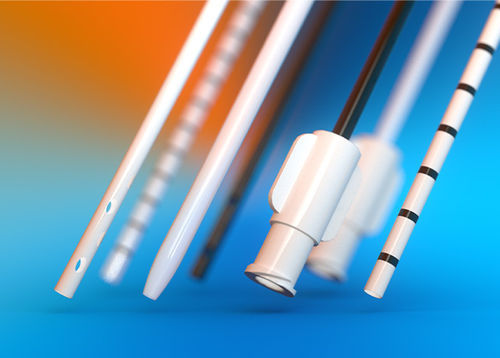

Medical device manufacturing tubing

polypropylenepolyethersulfonepolysulfone

Overview
Nordson MEDICAL supplies high-precision, specialized extruded tubing for medical devices, offering single-lumen, multi-lumen, multi-layer and co-extruded constructions. FDA-registered production sites, ISO 13485 certified facilities, and Class 8 qualified production cleanrooms support rapid turnaround and scalable production capacity.

Key Features & Capabilities

• Single-lumen extruded tubing including ultrathin-wall and microthin-wall constructions
• Multi-lumen extruded tubing: 2–9 lumens, shaped lumens, round or non-round cross-sections (oval, figure-eight)
• Multi-layer extrusion: up to three discrete layers to combine functionality (e.g., lubricity, bondability, active layers such as hydrophilic or drug-eluting)
• Co-extruded/stripe extrusions for radiopaque stripes and multi-material jackets
• Tapered and bump tubing for OD/ID transitions and localized OD increases
• Profile extrusion for complex shapes and geometries

Materials

• Full range of thermoplastics
• Fluoropolymers / melt fluoropolymers: FEP, PFA, PCTFE, ETFE, PVDF, ECTFE, EFEP, PTFE
• Fluoroplastics (FEP, PTFE) and etched/treated fluoropolymer options
• Engineering plastics: PEEK, Polysulfone
• Nylon (Nylon 11, Nylon 12)
• Pebax grades (multiple durometers including Pebax 2533SA01MED, 3533SA01MED, 4033SA01MED, 5533SA01MED, 633SA01MED, 7033SA01MED, 7233SA01MED)
• Polyurethane, PET, HDPE, LDPE, TPE, polycarbonate, and many custom-compounded materials (colorants, stabilizers, radiopaque fillers, active agents)

Lubricious Materials & Additives
Used as liners or alternatives to hydrophilic coatings to improve insertion, pushability, and bondability. Market-leading lubricious additives referenced include: EverGlide®, PEBASlide, ProPell S™, Mobilize.

Secondary Processes

• Tipping:
  Radius or chamfer formation at tube ends; closed, tapered, radiopaque, or soft tips; radiused and atraumatic tip options
• Printing:
  Text, numeric identifiers, depth marks, multiple colors and surface treatments; conventional medical-grade printing processes supported
• Hole Forming:
  Precision holes and skive patterns for balloon inflation, irrigation, with razor-sharp cutting edges and multi-lumen registration
• Over-molding:
  Integration of multiple materials (e.g., Y-connectors, hubs, strain reliefs) to produce combined parts and assemblies
• Other value-added processes: OD/ID etching (including sodium naphthalene etching for fluoropolymers), flaring, flanging, notching, drilling, welding, radiopaque tip integration

In-house Equipment & Process Controls

• Best-in-class tolerances and validated processes to support customer compliance
• Automatic closed-loop feedback systems to maintain constant melt pressure
• High-speed polyurethane extrusion capacity (cited >300 million feet annually)
• Cleanroom environment for most commercial extrusions

Technical Information (selected tables & ranges)
Single-Lumen Extruded Tubing:
OD Range: From 0.003" (0.076 mm) — Ultrathin start
OD Range (general): 0.004"–0.120" (0.102 mm–3.048 mm) and up to 0.020"–1" (0.508 mm–25.4 mm) depending on category
OD Tolerance: From ±0.0003" (±0.008 mm); ultrathin: from ±0.0002" (±0.005 mm)
Wall: From 0.001" (0.025 mm); microthin down to 0.00025" (0.006 mm)–0.003" (0.08 mm)
Length: Standard 62" (157 cm); max straight length 96" (longer lengths possible for some sizes); minimum lengths available down to 0.020" or less where applicable

Multi-Lumen Extruded Tubing:
OD Range: 0.030" (0.8 mm) and up
OD Tolerance: From ±0.001" (±0.025 mm)
Lumen Diameter: 0.006" (0.152 mm) and up
Length: Standard 62" (157 cm); custom cutting options available
Typical Materials: Polyurethane, Pebax, PET, Nylon, Polypropylene, PEEK, Polycarbonate, HDPE, TPE

Co-Extruded / Multi-Layer Extruded Tubing:
Layers: Up to three discrete layers
OD Range: From 0.016" (0.410 mm)
OD Tolerance: From ±0.00027" (±0.007 mm)
Wall: From 0.0016" (0.041 mm)
Outer jacket typical materials: Polyurethane, Pebax, PET, Nylon, Polypropylene, HDPE, TPE
Inner jacket typical materials: Polypropylene, HDPE, Polyurethane

Co-Extruded / Stripe Extruded Tubing (radiopaque stripes):
OD Range: From 0.020" (0.508 mm); OD tolerance from ±0.00027" (±0.007 mm); wall from 0.0016" (0.04 mm)
Stripes use radiopaque fillers such as barium sulfate, bismuth trioxide, bismuth subcarbonate, tungsten

Fluoropolymer & Material Property Highlights (summary)
Fluoropolymer options support excellent chemical/solvent resistance, low water absorption, high dielectric strength, low coefficients of friction, and a range of melting/upper service temperatures depending on polymer (PTFE, FEP, PFA, ETFE, PVDF, PCTFE, ECTFE, EFEP). Etching (sodium naphthalene process) is used to improve fluoropolymer bondability where required.

Caractéristiques / Spécifications techniques

• Product family: Single-lumen, multi-lumen, multi-layer, co-extruded, tapered/bump, profile extrusions
• OD ranges: from 0.003" (0.076 mm) up to >1" depending on construction
• Wall thickness: down to ~0.00025" (0.006 mm) for microthin-wall constructions; typical minimums vary by material and process
• OD tolerances: as tight as ±0.0002"–±0.00027" (±0.005 mm–±0.007 mm) depending on process
• Lumen min diameter: ~0.006" (0.152 mm) for multi-lumen
• Length: standard 62" (157 cm), maximum straight length 96" (longer lengths possible for some sizes); custom cutting available
• Materials supported: broad list including PTFE, FEP, PFA, ETFE, PVDF, PCTFE, ECTFE, EFEP, Nylon 11/12, Pebax (multiple grades), PEEK, polyurethanes, PET, HDPE, and many thermoplastics
• Value-added processes: tipping, printing, hole forming, over-molding, etching, flaring, notching, drilling, welding, radiopaque integration
