Hematology analyzer autosampler

for laboratory analyzersrobotichigh-throughput

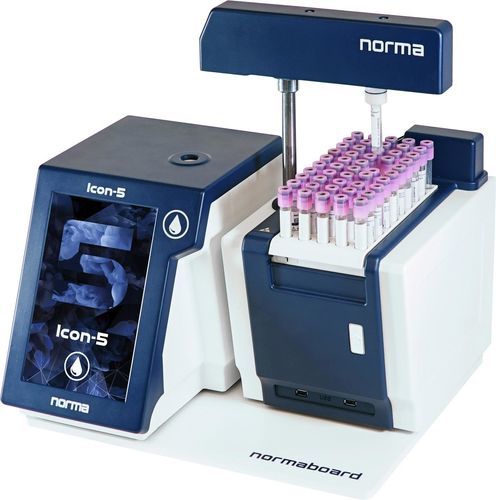

The Norma Autoloader is an automatic sample vial loading device that enhances workflow and time efficiency in laboratories. Compatible with Icon-5 and i3LAB hematology analyzers, it stands out as one of the few retrofittable autosamplers in the IVD market. Suitable for medium and large laboratories, it features a compact size, two interchangeable sample trays with a 50-vial capacity each, a built-in sample mixer, and a barcode reader. Key features include: - Compatibility with Icon-5 and i3LAB analyzers - Space-saving compact design - Two interchangeable trays with 50-vial capacity - Built-in sample mixer and barcode reader - Easy installation with Normaboard - USB connectivity - Full sequence and random access operation modes - Pause operation for emergency samples - Robotic arm with vial gripper - Control and calibrator material measurement in closed vial port Technical Specifications: - Dimensions: 340 x 220 x 310 mm - Weight: 8.5 kg - Throughput: 60 tests/hour with Icon-5 - Power: 24 VDC, 2.7 A, 100-240 VAC - Power Consumption: Max 60W
