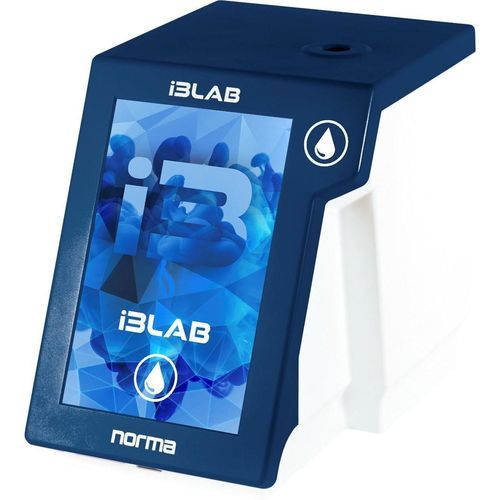

Automatic hematology analyzer i3LAB

compact22-parameter3-part differentiation

The i3LAB is an intelligent 3-part differential hematology analyzer designed for laboratory use with closed vial sampling. Overview The i3LAB is an intelligent hematology analyzer with 3-part differentiation, closed vial sampling, and an innovative, practical design. The i3LAB provides a comprehensive blood count report with 22 parameters, including histograms for white blood cells (WBC), red blood cells (RBC), and platelets (PLT), using volumetric impedance method for red and white blood cell detection, and photometric method for hemoglobin (HGB) level measurement. The i3LAB is primarily developed for laboratory environments, offering a throughput of 80 tests per hour and compatibility with the Norma Autoloader, providing effective support in the daily work of laboratory staff. It features a compact size, low reagent consumption—using only two reagents—and small sample volume processing, with no weekly maintenance required by the user. Key Features and Main Advantages - 3-part differential hematology analyzer providing a comprehensive blood count report with 22 parameters - Closed sampling mode - Capability to measure capillary samples - Volumetric impedance method for RBC and WBC detection, and photometric method for HGB level measurement - Throughput of 80 tests per hour - Compact size - Extremely low reagent consumption – uses only diluent and lysing agent - Reagent packs available for 100 and 1000 tests - Smallest sample volume processed – 2* 1.4 µL of whole blood - 10.1” LCD touchscreen – easy to use, intuitive navigation - Minimal user maintenance - Remote access – a convenient online diagnostic tool - Advanced barcode and QR code reader - LIS connectivity Technical Specifications - Parameters (22): WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, RDWsd/cv, MCH, MCHC, PLT, MPV, PCT, PDWsd/cv, PLC-R%, PLC-C - Measurement Technology: Volumetric impedance method for RBC and WBC, Photometric method for HGB - Histograms: 3-part RBC, PLT, WBC - Sampling Mode: Closed vial mode (normal and pre-diluted 1-3) - Sample Volume Aspirated/Processed: 38 µL of whole blood aspirated, 2* 1.4 µL of whole blood processed - Throughput: 80 tests per hour - Precision (CV, max): WBC< 3%, RBC< 2%, MCV< 1%, HGB< 2%, PLT< 5% - Storage Capacity: Up to 60,000 test results, including histograms and patient data - User Interface: 10.1” LCD, 1280×800 with capacitive touchscreen, portrait orientation - Available Languages: English, Italian, French, Russian, Hungarian, Spanish, Romanian, Portuguese, Vietnamese, Ukrainian, Bosnian - Connectivity: 2 USB ports, Ethernet connector, LIS (HL7) - Dimensions (H x W x D): 280 x 216 x 336 mm - Net Weight: 8.3 kg - Power Supply: External power supply, 12 VDC, 5A (100-240 VAC 50-60 Hz) - Power Consumption: Maximum 55W - Reagents: Only 2 reagents needed: Norma-iDil2, Norma-iLyse2; Reagent packs available for 1000 and 100 tests - Brand: Norma Diagnostika - Model: i3LAB - Type: 3-Part Differential Hematology Analyzer - Use: Laboratory
