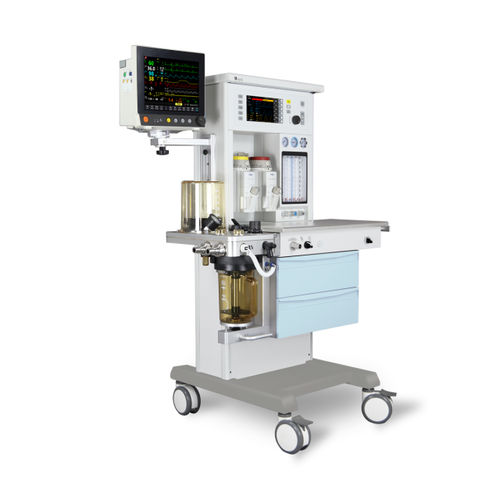

Infant anesthesia workstation Atlas N3

pediatrictrolley-mountedwith temperature control

Product overview
Atlas N3 anesthesia machine with 8.4" color TFT display (12.1" touch optional), configurable interface and full ventilation support for neonate, pediatric and adult patients.

Key features

• Display: 8.4" color TFT; optional 12.1" touch screen
• Interface: user-oriented layout with clear controls
• Tidal volume: 10–1500 ml; PEEP range 0–50 cmH2O
• Gas supply: up to 6 flow tubes for 3 gases; optional full-electronic control and electronic flow meter
• Breathing circuit: PPSU or metallic options; integrated circuit with built-in heater
• CO2 absorber: bypass design for in-line replacement of soda lime canister with online detector; one-hand operation
• Ventilation modes: V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, SIMV-PRVC, CPAP, PSV, HLM, manual and standby
• Additional: visible ACGO port, bellows up/down configuration, large workstation with optional dual guide rails

Technical specifications

• Model: Atlas N3
• Display: 8.4" TFT (12.1" touch optional)
• Tidal volume: 10–1500 ml
• PEEP: 0–50 cmH2O
• Gas connections: up to 6 flow tubes for 3 gases
• Breathing circuit material: PPSU / autoclavable metal (PPSU up to 134°C)
• CO2 absorber: bypass, online canister detector, one-hand replacement
• Integrated heater: yes (breathing circuit)
• Supported modes: V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, SIMV-PRVC, CPAP, PSV, HLM, manual, standby
• Alarms: incorrect circuit installation, canister status and standard ventilation alarms

Clinical applications

• General anesthesia in operating rooms
• Perioperative ventilation for neonates, pediatrics and adults
• Use in recovery and critical care environments

Safety and maintenance

• Bypass canister enables safe replacement during operation
• Autoclavable components and materials for sterilization
• Online canister detector and audible/visual alarms to support safe operation
