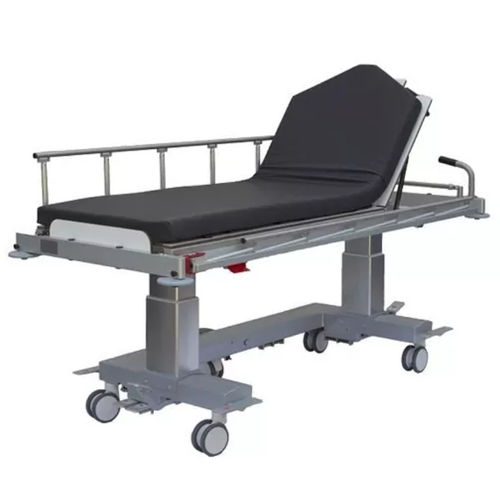

Trauma stretcher trolley U-Shape 953

medical imaginghydraulicTrendelenburg

Overview
The X-Ray Stretcher U-Shape 953 is designed to support trauma and radiology workflows from patient arrival. Developed with input from major trauma centers, it combines radiological access, patient handling and emergency positioning in a single stretcher.

Key features

• U-shape base enabling easy access for various brands and types of X-ray equipment
• Radio-translucent top that slides in both longitudinal directions approximately 21.5 cm (8.5") to allow x-rays over the full body length
• Multi-functional: primarily for x-rays but increasingly used in endoscopy departments
• Reduces transfers from stretcher to radiology table, minimizing risks to patients and clinical staff

Functional details
The stretcher offers hydraulic height adjustment, an adjustable backrest and Trendelenburg/reverse Trendelenburg positioning to meet trauma care requirements. Controls are positioned for ergonomic use by clinical staff and the design facilitates secure patient handling during imaging and procedures.

Technical specifications

• Hydraulic height adjustment: 61 to 84 cm (24" to 33")
• Adjustable backrest: up to 70°
• Maximum Trendelenburg / reverse Trendelenburg: 10°
• Radio-translucent sliding top travel (longitudinal): approx. 21.5 cm (8.5")
• Design: U-shape base for radiology access
• Primary applications: trauma patient handling, radiology; also used in endoscopy
