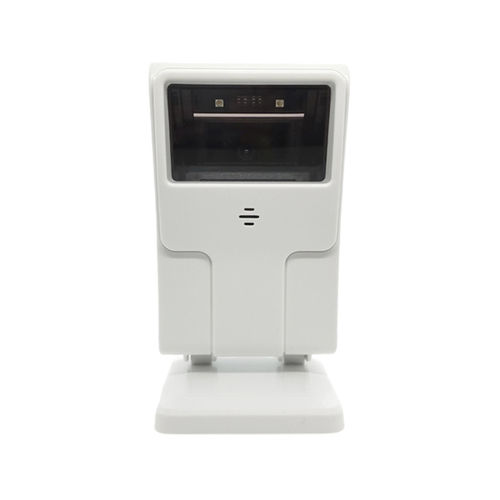

Medical barcode scanner DT-6600 HC

2D1Dbenchtop

Hands-free Barcode Scanner DT-6600HC is designed specifically for the application in a healthcare environment with antimicrobial protection to resist the growth of odor-and-stain-causing bacteria. It complies with JIS Z2801 : 2010 antimicrobial standard. The housing’s plastic material incorporates a silver inorganic antimicrobial agent that will not wear off during its lifetime and this provides an extra layer of protection against the growth of microorganisms. The DT-6600HC delivers outstanding scanning performance on all common 1D and 2D barcodes which making it also perfect for general purpose applications. * General Interface: USB-HID / USB-COM / RS-232 Barcodes Supported (1D): UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 ISBN, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacode, Code 128, Code 93, Codeabar/ NW7, Interleaved 2 of 5, MSI, GS1DataBar, (Stacked, Limited, Expanded, Expanded Stacked) Barcodes Supported (2D): PDF417, Micro PDF417, Data Matrix, QR Code, MicroQR Code, Aztec, MaxiCode * Optical Optical System: 648 H x 488 V pixels Light Source: Illumination: 630nm LEDs Resolution: 4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF417) Focusing Distance: Up to 267mm Field of View: Horizontal: 48°; Vertical: 36° PCS: 30% Indicator: Beeper and LED * Electrical Voltage: DC 5V Scanning Currents: < 230 mA * Environment Operating Temperature: 0℃ to 40℃ (32℉ to 104℉) Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) Relative Humidity: 15% - 95% RH (non-condensing) Shock Resistance: 1.5m drops
