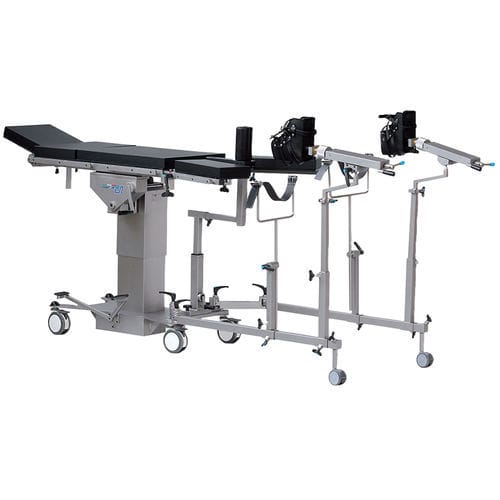

5-section operating table top GS HV

radiolucent

GS HV Completely made of stainless steel, height adjustable, trendelenburg and reverse trendelenburg, equipped with pivoting wheels with braking system. The table top is radiolucent with longitudinal traslation on ball bearings, of about 1000 mm. The head section is radiolucent and can be raised and removed as the back rest. The leg section is removable and adjustable, divided in two separate parts. The pelvis support is height adjustable and extensible. The support bars have two joints and reaches a rotation of 180° in order to satisfy any kind of operations on upper or lower limbs. The tractions with millimetric screws are controlled by hand-wheel. The table is equipped with: hook for connection of ankle supports, leg rest with small fork, high pressure laminates pelvic support in different sizes, radiolucent mattresses, transparent to X-Rays, for sterilization in autoclave. The table top is pre-arranged for connection of X-Rays cassette holder on all its length. Load Capacity 250 Kg, Table top dimensions 1800 X 480 mm The technical specification mentioned are approximative. Nuova BN, reserves to make changes, if necessary.
