Compact machine specific for deep forming of thermoformable plastic material and flat welding.
The robust structure of the machine has dimensions ensures stability and allows ensuring easy accessibility and simple cleaning.
The construction materials are guaranteed against the loss of slag or particles. The transparent protections are unbreakable, anti-scratch and anti-damage and are made of certified plastic material specific for the pharmaceutical market, while the fixed protectors are in stainless steel.

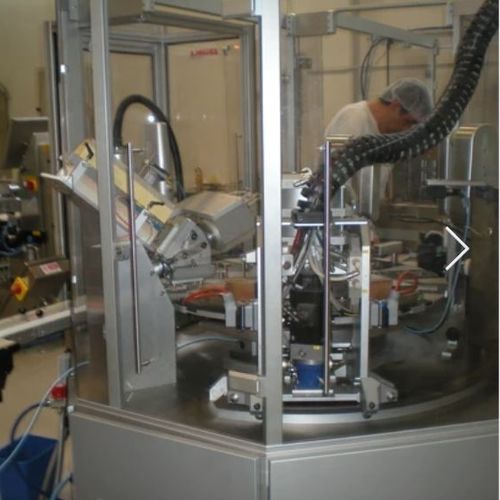

The THERMOFORMING MACHINE R1 is designed and manufactured to produce bins, consisting of a tray (valve), a vial containing the products and a pre-glued cardboard that hermetically closes the blister.
The machine is composed of two main main areas, the first is dedicated to forming the tray, by hot molding a thermoformable film, the second is used for the packaging of the whole unit, thanks to the combined actions of various specific groups, placed around a carousel consisting of 12 stations.
Forming system of the formable material through pneumatic embossing system that includes a plug-assist system preforming with hot punches.
Formed film pulling by means of servo motor.
Visual and manual adjustment for format change.
Pneumatic die cutting unit, with system for pick & place the blister on the carousel for final sealing.
Controls and management of the machine by means of a touch screen operator panel.
Max machine speed 40 cycles per minute for 50 blisters per minute.
Films reel dimensions: PET-G thermoformable and lidding foil diameter from 400 to 800 mm.
Working pressure 6 bar.
