Oxygen therapy hyperbaric cabin Hyperion™

on castersmonoplace

Overview:

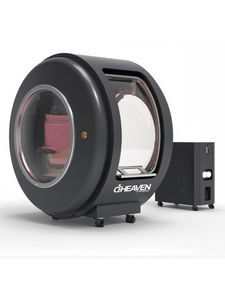

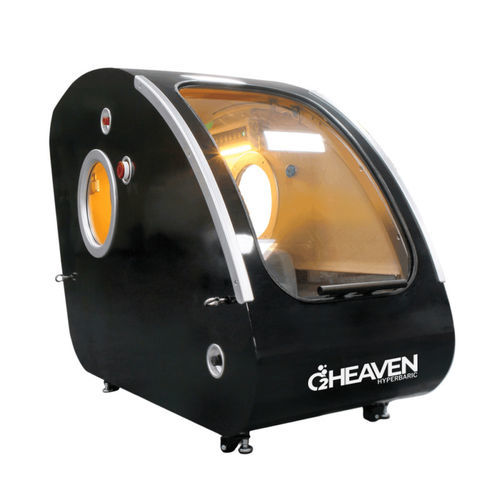

Hyperion™ is a hard-shell, seated mono-place hyperbaric chamber designed for clinical hyperbaric oxygen therapy (HBOT). The unit provides a spacious, bright environment with three large viewing windows and supports configurable therapy pressures up to 2.0 ATA.

Key product highlights:

• Rigid mono-place seated chamber with three large transparent viewing windows.
• Adjustable ergonomic lounge chair supporting upright and semi-reclined therapy positions; integrated reading light.
• Large smooth top-sliding transparent door for easy entry and exit.
• Operable from inside and outside to allow single-user independence.
• Oxygen delivery via mask or nasal cannula at approximately 93%+ for consistent therapeutic performance.
• Selectable pressure ranges: 1.2–1.5 ATA or 1.2–2.0 ATA.

System features:

• Adjustable pressure control with single-touch ATA selection and smooth, gradual pressurization transitions for patient comfort.
• Integrated 10 L/min oxygen concentrator delivering ~90–93% O2 at 10 L/min.
• Sterilization and anion air purification system for PM2.5 capture and water-nano sterilization to reduce bacteria, odors, and viruses.
• Chiller temperature regulation system to manage internal temperature during pressurization.
• Two-way communication via built-in high-definition intercom with noise-cancelling technology.
• Emergency decompression valve and ultra-quiet pressure valve for safety and comfort.

Included with the system / accessories:

• Reclining lounge seat installed in the chamber.
• Choice of combined all-in-one Hyperion unit (compressor + concentrator + chiller) or separate compressor, oxygen concentrator, and chiller units; connection hoses included.
• Optional exterior customization: company logo or preferred graphics applied to chamber exterior.

Technical specifications:

• Model name: Hyperion™
• Operating pressure: configurable 1.2–1.5 ATA or 1.2–2.0 ATA (selectable)
• Material: stainless steel body with polycarbonate transparent viewing windows
• Viewing windows: 3 large windows
• Emergency decompression valve: Yes
• Operation: internal and external controls (single-user operable)
• Ultra-quiet pressure valve: Yes
• Chamber dimensions (L x W x H): 190 x 90 x 150 cm
• Chamber weight: 700 kg
• System includes: reclining lounge seat; compressor; oxygen concentrator; chiller; connection hoses; choice of combined all-in-one unit or separate units
• All-in-one unit dimensions (compressor + concentrator + chiller): 75 x 35 x 75 cm; Weight: 112 kg; Oxygen output: 10 L/min at ~90–93% O2; Flow rate: 74 L/min; Power: 1100 W / 1.5 HP
• Oxygen delivery: approximately 93%+ via mask or nasal cannula
• Additional costs: VAT, transport, installation and training excluded
