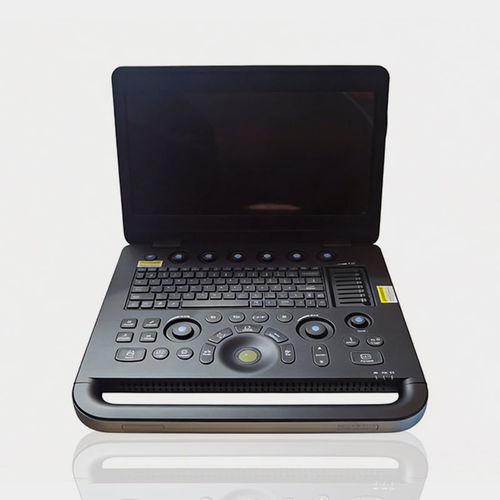

Portable veterinary ultrasound system VET-SN50

multipurposecolor dopplerlinear

Product Overview
This portable, ultra-thin veterinary ultrasound scanner offers a light-touch keyboard with shortcut knobs, multiple probe compatibility and full-digital Color Doppler imaging. Designed for clinical and field veterinary use, it delivers 15.6" Full HD display and an integrated 5200mAh battery for extended mobile operation.

Key Features

• Ultra-thin chassis; net weight approx. 3.5 kg
• Backlit light-touch keyboard with 6 shortcut knobs
• Built-in 5200mAh Li-ion battery — up to ~4 hours runtime (4-hour charge)
• Supports 7+ transducer types (convex, linear, phased array, micro-convex, etc.)
• 15.6" LED monitor with 1920×1080 Full HD resolution
• Full digital Color Doppler for color flow visualization

Imaging Capabilities

• Imaging modes: B, M, Color, PW and CW
• Dual-view mode: simultaneous real-time B-mode and Color (CFM + B)
• One-tap image optimization for fast enhancement
• High-resolution imaging suitable for abdominal, cardiac and small-organ examinations

Product Specifications
Model: Professional Series
Dimensions: Not specified
Weight: 3.5 kg (net weight stated)
Voltage: 110-240V AC
Certification: CE‑MDR, FDA 510(k), ISO 13485

Standard Configuration

• Main unit (Win7 OS, ≥4GB RAM, 256GB SSD) — 1 pc
• 15.6" High-resolution LED monitor (1920×1080) — 1 pc
• Built-in stereo speakers — 1 pc
• Dual active transducer ports — 1 pc
• 5200mAh Li-ion battery (battery status display) — 1 pc
• Standard transducer (e.g., 3.5MHz convex) — 1 pc
• Basic software functions (B/M/Color/PW/CW, Auto Optimization) — 1 pc
• Standard I/O ports (VGA, 2×USB 2.0, HDMI, DICOM) — 1 pc
• Backlit keyboard with 6 shortcut knobs — 1 pc

Optional Accessories

• Additional transducers (e.g., 7.5MHz linear, 6.5MHz phased array)
• 3D/4D imaging software packages
• Needle guide and bracket kits
• External printers
• HDMI-to-BNC converter box
• Extended battery pack
• Aluminum transport case
• Micro-convex probes (6.5MHz/7.5MHz for cardiac / small organ)
• Multi-language software support (Russian, Spanish, Portuguese, French, Indonesian)

Portable & Operational Highlights

• Lightweight design suited for clinic and field use
• Backlit keyboard for low-light examinations
• Shortcut knobs for rapid parameter adjustment and workflow efficiency
• Multi-language system for international use

Technical Specifications

• Commercial name / Model: VET-SN50
• Series: Professional Series
• Display: 15.6" Full HD (1920×1080)
• Imaging modes: B, M, Color, PW, CW, Dual-view (CFM+B)
• Battery: 5200mAh Li-ion (up to ~4 hours runtime)
• Transducer support: 7+ transducer types; dual active transducer ports
• Main unit configuration: Win7 OS, ≥4GB RAM, 256GB SSD
• I/O: VGA, 2×USB 2.0, HDMI, DICOM
• Weight: 3.5 kg (net)
• Certifications: CE‑MDR, FDA 510(k), ISO 13485
• Power: 110-240V AC
