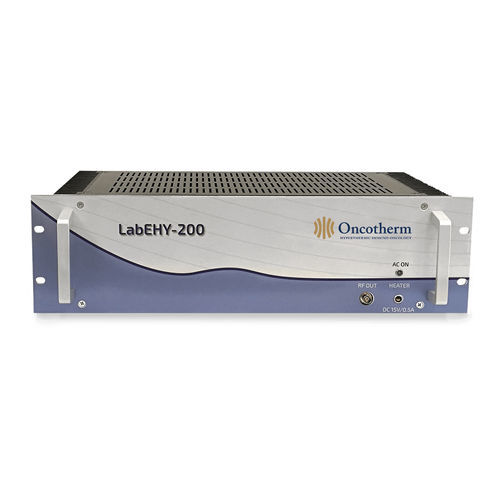

Locoregional hyperthermia system LabEHY 200

An electro-hyperthermic device specially developed for research purposes The LabEHY device was developed to perform various types of cell line (in vitro) and small animal (in vivo) experiments using the oncothermia (mEHT) method, which is used for the non-invasive treatment of malignant tissues. The difference between the complex dielectric constant (complex impedance) of malignant and healthy tissues makes it possible to distinguish them, so the main effect of the treatment is the local overheating of the tumor in addition to the use of other electrical effects. Technical specifications Line voltage: AC 230V/50Hz Power input: 120 VA Output useful power: max. 80W Nominal load: 50 Ohm Output carrier frequency: 13.56 (MHz) Output modulating frequency: Fractal noise Weight: 13 (kg) Size (height,depth,width): 140*300*480 mm Temperature: +10°C - +30°C Relative humidity: 20% - 60% (non condensing) Air pressure: 700 hPa - 1060 hPa
