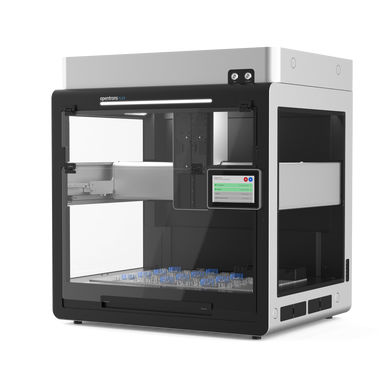

The Opentrons Flex HEPA/UV Module enables you to run sensitive contamination-prone applications. It removes 99.99% of 0.3 μm DNA-containing particulates and biological contaminants like bacteria, fungi, and other microorganisms from the air, creating a clean work environment inside the Opentrons Flex.
Features
Filter Contaminants
Filters 99.99% of biological contaminants 0.3μm small
UV-C Module
Integrated UV-C module for deck sterilization
Get Started Quickly
Simple, modular installation
Tech Specs
Dimensions
87cm x 64cm x 14cm (l/w/h)
Weight
42 lbs. / 20kg
Voltage
100 – 240 VAC
Noise Level
70 decibels
Filter Lifetime
3 years of moderate use (~6,000 hours)
Power Supply (AC)
Input: 2.2 A at 115 VAC, 1.1 A at 230 VAC
Output: 24 VDC, 8.4 A, 201 W max
Power Consumption
75.5 watts – 160 watts
Operating Space
20 cm / 8” (minimum) of side and top clearance
