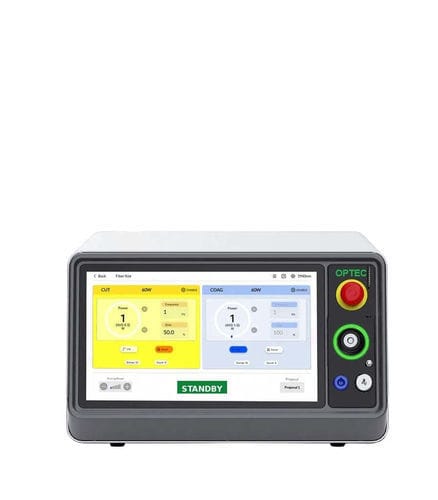

Prostate tumor treatment laser ablation system Thulium Duo

endoscopy-guided

Overview
Thulium Duo — next-generation thulium fiber laser designed for high-volume urology departments. Purpose-built for stone management and soft-tissue procedures in a compact plug-and-play system. Includes a 3-year worldwide full-service warranty.

Unmatched clinical performance

• Superior stone fragmentation — ultra-high repetition rates up to 10,000 Hz enable precise dusting and fragmentation with minimal retropulsion, reducing operative time and retreatment rates in lithotripsy procedures.
• Reliable ThuLEP & BPH treatment — shallow penetration depth (0.1–0.2 mm) provides controlled tissue ablation with effective hemostasis; suitable for ThuLEP, BPH enucleation, tumor treatment and stricture management.
• Dual emission modes — pulsed mode for high-peak-power lithotripsy (up to 600 W peak) and continuous-wave mode for precise soft-tissue coagulation.
• Low-loss energy delivery — 1.94 µm wavelength offers optimal water absorption for efficient interaction with calculi and soft tissue while protecting surrounding structures.

Smart design. Practical operation.

• RFID fiber recognition — automatic fiber compatibility check, no manual input required.
• Intuitive touchscreen GUI — rapid parameter setup with minimal learning curve.
• Dual footswitch — customizable pedal assignment for hands-free control.
• Universal power supply (100–240 V) — plug-and-play in any operating room worldwide, no dedicated power line required.
• Air-cooled, compact design — dimensions 43 × 60 × 30 cm; no water-supply connection or additional infrastructure overhead.

Fiber versatility
Compatible with a full range of disposable fibers (standard, ball-tip, gastro) in diameters from 200 µm to 1,000 µm, covering major urological applications.

Warranty
Every Thulium Duo includes a comprehensive 3-year full-service warranty covering parts, labor and direct manufacturer support from OPTEC Endoscopy Systems GmbH.

ROI considerations

• Disposable fibers eliminate sterilization costs and autoclave downtime.
• Universal power supply removes expensive OR infrastructure upgrades.
• 3-year full-service warranty reduces unpredictable repair costs.
• One platform covers both lithotripsy and ThuLEP — removes need for a second laser system.
• Air-cooled design reduces installation overhead and ongoing maintenance.

Technical specifications

• Wavelength: 1,940 nm (1.94 µm)
• Max average power: 60 W
• Max peak power: 600 W
• Repetition rate: Up to 10,000 Hz
• Pulse energy: 0.02 – 6 J
• Aiming beam: 532 nm, adjustable
• Power supply: 100–240 VAC, 50/60 Hz
• Cooling: Air-cooled
• Dimensions: 43 × 60 × 30 cm
• Weight: 40 kg
• Laser class: Class 4
• Fiber compatibility: 200–1,000 µm disposable fibers (standard, ball-tip, gastro)
