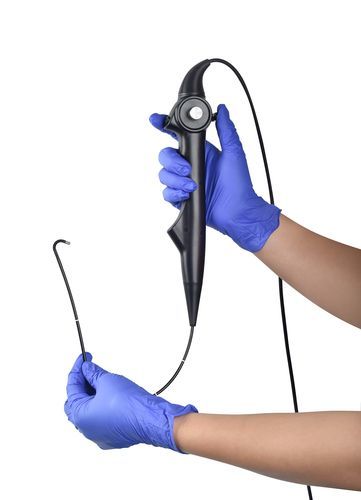

Pediatric video laryngoscope NasoFlex

wide-anglehigh-definitionflexible

Product Overview
USB NasoFlex — The Flexible Video Naso‑Pharyngo‑Laryngoscope with direct USB connection. Designed for ENT physicians: high‑resolution video endoscopy without an external video processor — plug into PC, laptop, tablet or smartphone and start immediately.

Key Clinical Advantages

• USB Plug & Play: direct connection to PC, laptop, tablet or smartphone — no external video processor or proprietary software required.
• HD Video Imaging: integrated CMOS chip with 1,280 × 800 pixels resolution and built‑in LED light source for uniform illumination.
• Slim outer diameter options from ø 2.80 mm — patient‑friendly for narrow anatomy; three sizes available.
• Wide field of view (120°) and large deflection (130° up / 130° down) with depth of field 3–200 mm for full visualization from nasopharynx to larynx.

Clinical Applications

• Sinuscopy — assessment of nasal cavity, mucosa and turbinates
• Nasopharyngoscopy — visualization of epipharynx, adenoids and tubal openings
• Laryngoscopy — assessment of vocal cords, glottis and hypopharynx
• Stroboscopy — diagnosis of voice disorders and vocal cord pathologies
• FEES (Fiberoptic Endoscopic Evaluation of Swallowing) — use in speech therapy and swallowing rehabilitation
• Pediatrics & Phoniatrics — slim diameters ideal for children and narrow anatomy

Semi-Disposable Option
OPTEC offers a semi‑disposable variant (OC 600235) for hygiene‑sensitive applications — limited reuse up to ~10 cycles. Standard models (OC 600128, OC 600130, OC 600140) are fully reprocessable and resistant to disinfectants. All models comply with EU Medical Device Regulation (MDR 2017/745) and are CE‑certified.

Seamless Practice Integration

• USB Video Class (UVC) standard — driver‑free, compatible with standard practice software.
• Operating systems: Windows, macOS (driver‑free).
• Direct integration into existing documentation software; optional OPTEC documentation software available.
• Compact and mobile — ideal for practice, clinic and field use. No separate processor, light guide or camera head — one device, everything included.

Model Overview
Parameter — OC 600128 — OC 600130 — OC 600140 — OC 600235
Outer Diameter — ø 2.80 mm — ø 3.00 mm — ø 4.00 mm — ø 3.50 mm
Working Length — 350 mm — 350 mm — 350 mm — 350 mm
Deflection — U 130° / D 130° — U 130° / D 130° — U 130° / D 130° — U 130° / D 130°
Field of View — 120° — 120° — 120° — 120°
Depth of Field — 3–200 mm — 3–200 mm — 3–200 mm — 3–200 mm
Working Channel — — — ø 2.0 mm (OC 600140 only) — —
Reprocessing — Unlimited — Unlimited — Unlimited — reuse up to 10 times

Technical specifications

• Imaging: integrated CMOS chip, 1,280 × 800 pixels.
• Illumination: integrated LED light source.
• Field of view: 120°.
• Depth of field: 3–200 mm.
• Deflection: 130° up / 130° down.
• Connection: USB (UVC standard, driver‑free).
• Compatibility: PC, laptop, tablet, smartphone; Windows / macOS.
• Outer diameter: ø 2.80 mm (OC 600128) · ø 3.00 mm (OC 600130) · ø 4.00 mm (OC 600140).
• Working length: 350 mm (all models).
• Working channel: ø 2.0 mm (OC 600140 only).
• Reprocessing: fully reprocessable (OC 600128 / 600130 / 600140); semi‑disposable OC 600235 (reuse ~10x).
• Regulatory: CE‑certified, MDR 2017/745.
