Adult ureteroscope UF30

high-definitionwith working channel

Description
Flexible video endoscope with chip-on-tip design. High-resolution CMOS chips deliver detailed video. Optional wireless adapter enables video streaming directly to a monitor, tablet or mobile device. The system is designed for mobile or stationary use with simple and intuitive operation.

Features

• Video endoscope with Chip-on-Tip CMOS imaging
• Integrated LED light source
• Video processor with integrated 10.2 inch monitor (VS100 Display)
• Optional cable or wireless video signal transmission
• Video streaming to monitor, mobile or tablet with WiFi adapter (optional)
• Small outside diameter with comparatively large working channel
• Handy, mobile, simple/intuitive operation
• Integrated digital recorder for documentation
• Easy integration into existing clinic software
• Universal interfaces: HDMI, USB, SD card, etc.

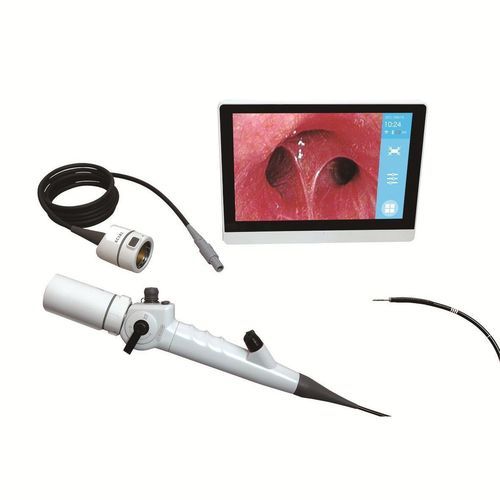

Complete system (examples)

• UF30 / UF28 flexible uretero renoscope
• VS100 Display with integrated CCU and 10.2 inch monitor
• Cable connector from monitor to endoscope
• Battery and mains cable
• Optional WiFi adapter for wireless streaming

VS100 Display (high level)

• Integrated CCU (camera control unit)
• LED light source
• 10.2 inch integrated monitor
• Digital recorder and storage options

Caractéristiques / Spécifications techniques

• Model series: UF30 / UF28
• Diameter options: 3.0 mm or 2.8 mm
• Outside diameter examples: 3 mm (9 Fr.) and 2.8 mm (8.4 Fr.)
• Working channel: 1.2 mm (4 Fr.)
• Field of view: 120°
• Working length: 700 mm
• Angulation: 275° Up / Down
• Imaging: Chip-on-tip CMOS, high-resolution
• Light source: Integrated LED
• Interfaces: HDMI, USB, SD card (digital recorder)
• Video transmission: cable or optional wireless (WiFi adapter)
• Typical applications: URS (ureteroscopy) and renal endoscopy
