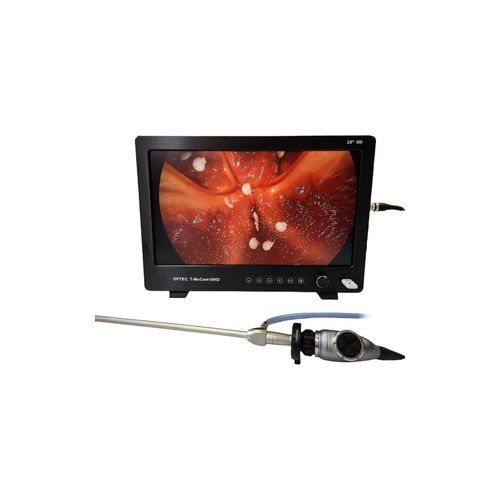

EUS endoscopic imaging system T-MoCam-19HD

colonoscopy

Overview
The T-MoCam 19HD integrates an 80 W LED light source, a 1/2.8-inch Full HD 1-chip CMOS camera and a medical-grade 19-inch Full HD monitor in a single compact unit. Built-in digital USB recording enables procedure documentation without external PC or recorder. Designed for arthroscopy, sinuscopy and a broad range of endoscopic applications in clinical environments.

Badges

• CE Certified
• IEC 60601-1 · Class I · Type BF
• Full HD 1920 × 1080
• LED 50,000 h service life
• Onboard USB recording

Key components

• Camera: 1/2.8-inch Sony CMOS Full HD sensor (1920 × 1080 p / 60 fps) with on-screen menu for full parameter control; sensitivity 0.01 lux.
• Camera head: Ergonomic, lightweight head with four programmable remote buttons; compatible with standard TV adapters, zoom adapters, beam splitters and microscope adapters; fully immersible for cleaning and sterilisation.
• LED light source: Integrated 80 W LED lamp with high-efficiency reflector — up to 50,000 h service life.
• HD monitor: Medical-grade 19-inch Full HD LCD integrated into the system chassis. Video outputs: 1 × HDMI/DVI, 1 × CVBS (composite).
• Video recorder: Integrated digital recorder with USB-stick output for reliable procedural documentation without additional hardware.

Your advantages at a glance

• Full HD image quality — 1/2.8-inch Sony CMOS sensor for diagnostic clarity
• 80 W LED light source — long service life and reduced maintenance
• Onboard USB recorder — direct documentation without external PC
• Image freeze function — capture intraoperative images without workflow interruption
• Integrated 19-inch HD monitor — medical-grade display included
• Ergonomic camera head — lightweight with 4 programmable buttons
• Compact all-in-one design — easy transport and fast setup in clinical rooms
• Universal compatibility — compatible with standard rigid and semi-rigid endoscopes

Technical specifications

• Video system: PAL
• Sensor: 1/2.8-inch Sony CMOS — 1920 × 1080 p / 60 fps
• Sensitivity: 0.01 lux
• Monitor: 19-inch LCD Full HD, medical grade
• Video outputs: 1 × HDMI/DVI | 1 × CVBS (composite)
• Light source: 80 W LED
• Colour temperature: 5,700 K
• Power supply: 115–230 VAC, 50–60 Hz
• Dimensions: 420 × 340 × 150 mm (W × H × D)
• Weight: 8.5 kg
• Standards: CE | IEC 60601-1 | Class I | Type BF
• Included article number/configuration: OP 120600 — complete system comprising CCU, camera head, 22 mm TV adapter, 80 W LED light source, 19-inch medical-grade HD monitor, mains cable and user manual
