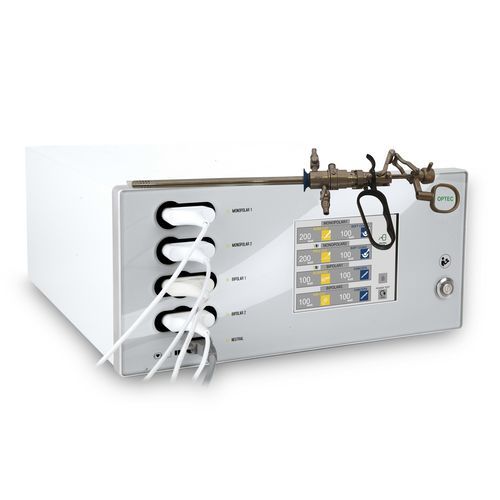

Monopolar cutting electrosurgical unit X300

bipolar cuttingcoagulationmonopolar coagulation

Product overview
The X300 is an electrosurgical generator designed for versatile operative use across multiple surgical specialties. It offers four monopolar coagulation modes, several cutting modes including a polypectomy mode with alternating cut/coagulation, and dedicated bipolar modes (including BiSeal®) optimized for vessel sealing and bipolar TURP. The unit auto-detects a double footswitch for streamlined control.

Applications

• General surgery
• Traumatology
• Cardiac and thoracic surgery
• Vascular surgery
• Urology
• ENT
• Gynecology

Outputs / Electrical supply
Outlets: 2x monopolar, 2x bipolar
Electric supply: 100–260 V / 50 Hz
Max. capacity: 300 W monopolar, 100 W bipolar, 120 W BiSeal
Operating frequency: 500 kHz

Output power in monopolar operation
Pure cut: 300 W at 500 Ω
Blend cut: 250 W at 500 Ω
Polypectomy mode (alternating cut/coagulation): 80 W at 250 Ω
Cutting in water environment (TUR): 250 W at 500 Ω
Soft / Contact coagulation (no sparks / desiccate mode): 140 W at 250 Ω
Forced coagulation: 160 W at 500 Ω
Spray coagulation: 80 W at 1500 Ω
Coagulation in water environment (TUR): 160 W at 500 Ω

Output power in bipolar operation
Blend Cut: 140 W at 250 Ω
Cutting in water environment (TUR): 230 W at 100 Ω
Coagulation (Mode “Bipolar Forceps”): 100 W at 100 Ω
Coagulation in water environment (TUR): 160 W at 100 Ω
Bipolar coagulation (Mode “Bipolar Forceps” AUTO Start): 100 W at 100 Ω
Vessel sealing, BiSeal®: 120 W (peak: 200 W) at 100 Ω

Technical specifications

• Model: X300
• Commercial name: HF-Generator X300
• Vendor / Brand: OPTEC
• Outlets: 2 monopolar, 2 bipolar
• Electric supply: 100–260 V / 50 Hz
• Max. capacities: 300 W (monopolar), 100 W (bipolar), 120 W (BiSeal)
• Operating frequency: 500 kHz
• Polypectomy mode: alternating cut/coagulation, 80 W at 250 Ω
• Support for double footswitch (auto-detect)
• SKU: HF 9509
• Product ID (site): 9012915306819
