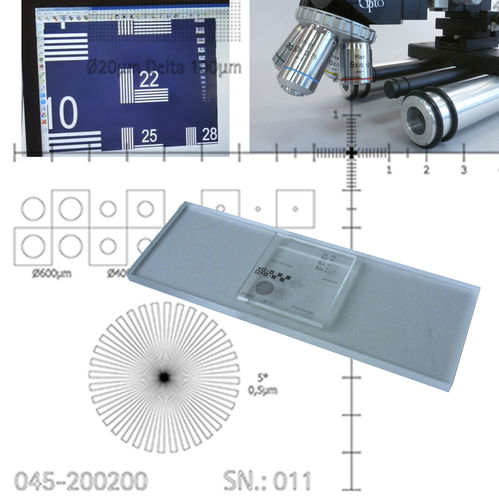

Calibration Target Micro V1 with Resolution Test 1000LP

Optical calibration and resolution testing are critical metrics in understanding and optimizing any optical system, from microscope to camera and visual systems.

Opto´s Calibration Target Micro V1 is unique in that it combines very useful resolution data, combined with ultra-high definition micro features, together enabling efficient and accurate optimization of any optical setup.

Ultra-high definition micro features, compatible to the most demanding optical calibration requirements

Four unique quadrants combining resolution targets to measurement scales

Supplied in a dedicated padded storage case

Technical data:
Structure: chrome on glass
Minimal structure size: 0.5 μm
Maximal structure size: 600 μm
Structure shapes: various shapes
Scale in x- and y-direction
Dimension 76 x 26 x 4.5 mm
Weight 17 g
Optional with DAkkS-certification in accordance on accreditation with DIN EN ISO/IEC 17025

Article number: 045-200200
Aricle number with DAkkS-certificate: 045-200200-DKD10
