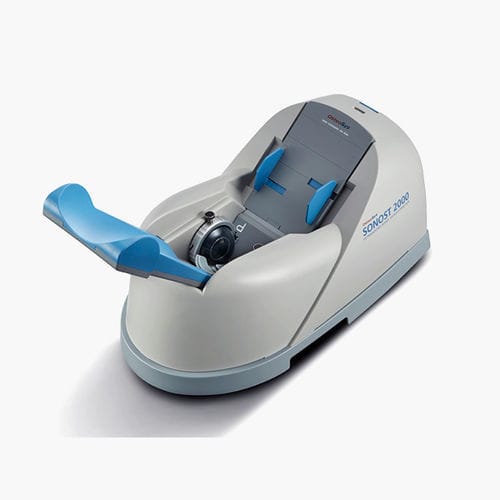

Ultrasound bone densitometer SONOST-2000

for heel bone examination

It enables a swift and easy measurement of Calcaneus by calculating the sound of speed (SOS) and Broadband Ultrasound Attenuation (BUA). Due to its compact design, you can use SONOST-2000 with a laptop for your portable measurement. SOS and BUA for Measurement of BMD The ultrasound pulse passing through the bones is significantly attenuated with diffusing signals and absorption by the spongy tissues. And QUS bone mineral density is calculated by SOS and BUA, the data obtained from a density differentiating process of sponge tissues. Specification Measured parameter T-score, Z-score, SOS, BUA, BQI index Reproducibility SOS – ≤ 1% CV BUA – ≤ 2% CV QC check Daily QC phantom Dimension (W)523mm × (D)286mm × (H)254mm (Calf supporter folded) (W)523mm × (D)286mm × (H)254mm Weight 7.8kg
