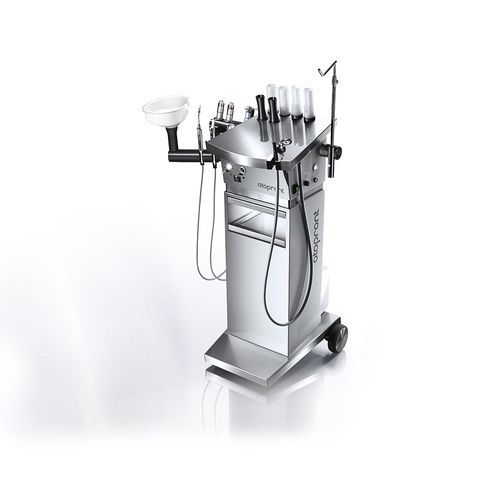

ENT workstation SMART

with lightwith shelveswith monitor

The idea for the SMART arose from the groundbreaking form of the first ENT treatment unit, the Otopront "Säule" (pillar). This all functional elements in one place unifying design was reinterpreted in respect of today's requirements as well as technical developments. The result is a highly flexible, yet fully equipped, slim-designed and elegant treatment unit.

In accordance with today's requirement for flexibility
With its two stable, appropriately sized castors the SMART can be rolled smoothly to different locations. Optional equipment is also provided with castors, such as a microscope with a stand or the accompanying instrument tables and cabinets. The complete unit is therefore flexible for mobile use in outpatient surgery, at the bedside or in several treatment rooms.

Full functionality despite its small dimensions
Thanks to a space-saving arrangement of all components the SMART can be fully equipped: vibration-free high performance surgical suction unit for 24-hour use, hot water with rinsing, compressed air unit, up to 3 automatically switching LED light sources, integration of RF or endoscopy systems and microscopes.

Sophisticated ergonomics and design
All elements can be easily operated both sitting and standing, because of the forwardly inclined top and its circular arrangement around the body. The perfect "assistant" for standing treatment.

Despite its compact size all well-established Otopront standards are part of the SMART unit - such as to be pulled out stainless steel instrument trays with integrated tissue dispenser. Which means that for each patient a fresh instrument space is available within seconds. Instrument drawers with variable compartments.
Lateral (left/right) height-adjustable mounted swivel desks are used to store other instruments or diagnostic equipment as needed, such as the compact PES PILOT HDpro videoendoscopy system.

3 LED light sources, 2 preheating quivers and disinfection quiver, quiver for flexible optics and endoscope intermediate support.

An optional compressed air system including spray bottles with shatter protection and easy snap connection provides maximum working safety and comfort.
Disinfection quiver
with Otopront double quiver system, quiver for flexible optics. endoscope intermediate support

Sophisticated hygiene as Otopront standard
Autoclavability of all handpieces, application parts (spray bottles, cannulas, adapters, etc.), removable covers and hoses. Quick fasteners on all hoses ensure easy cleaning and assembly.

Easy accessibility
for cleaning and maintenance

User-friendly, quick and easy exchange
of secretions glass containers, disinfectant solutions and replacement of filters. Disposable suction bottles such as ABBOT, BAXTER, SERRES etc. with volumes of 1 to 5 liters are compatible with the SMART unit.

Various types of pumps selectable (dry running or piston pump)
Suction hose rinsing unit
Automatic suction bottle emptying
Mirror reheating unit
Instrument tray in the upper part, 2-stage, with plexiglass cover
Instrument drawer
Pullout panel with integrated paper roll
Suction unit with non-vibrating, smooth-running vacuum pump, 58 l /min, max. vacuum 91 %
Storage drawer with double pull-out
Open compartment with electric socket for additional equipment
