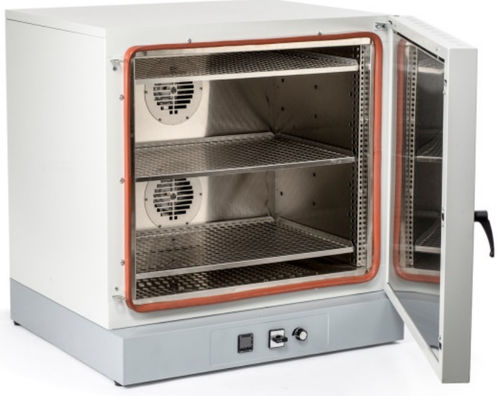

Heating furnace Ovenvan F series
laboratoryforced convectionstainless steel

heating furnace
heating furnace
Add to favorites
Compare this product


Characteristics

Function
heating
Applications
laboratory
Type
forced convection
Sterilization chamber material
stainless steel
Number of doors
1-door
Temperature range

Max.: 300 °C (572 °F)

Min.: 10 °C (50 °F)

Capacity

20 l, 60 l, 120 l, 220 l, 420 l (5.3 gal)

Description

igital Oven controlled by microprocessor. Electronic Controller at the lower part to avoid overheating Air forced convection to increase homogeneity and heating speed Stainless steel 304 inner chamber Removable shelves Epoxi painting external housing Technical Specifications Model - Ovenvan F 20 Ovenvan F 60 Ovenvan F 120 Ovenvan F 220 Ovenvan F420 Referencia - 59000-00500 59000-00501 59000-00502 59000-00503 59000-00504 Thermostatization Vol. (l) - 20 60 120 220 420 Temp range(ºC) - T amb +10 – 300 T amb +10 – 300 T amb +10 – 300 T amb +10 – 300 T amb +10 – 300 T estability( ± ºC) - ±0,3 ±0,3 ±0,3 ±0,3 ±0,3 T Homogeneity at 300ºC - ± 5 ± 5 ± 5 ± 5 ± 7,5 Voltage (V) - 230 230 230 230 400 Potwer (W) - 1000 2000 2200 4000 6200 General Data Inner chamber material - St.Steel 304 Shelves number - 2 3 3 3 3 Max shelves - 5 7 7 7 7 Max weight by shelf (Kg) - 10 10 15 15 15 Useful dimensions. (mm) (Wide x depth x height) - 240x280x340 380x380x420 550x400x580 730x500x620 1000x500x860 External dimensions (mm) (Wide x depth x height) - 460x680x640 600x760x200 750x780x880 930x980x920 1200x930x120 Net Weight (kg) - 34 50 70 102 155 Accessories Accesories 59000-01500 - Buzzer 59000-01501 - Timer 59000-01502 - OTP-over temperature protection 59000-01504 - Programable Controller 59000-01505 - Interface RS 232 or 485 59000-01506 - PC connection and software 59000-01507 - Metalic box for sample treatment 59000-01508 - In gas –box .

Catalogs

Ovenvan F
Ovenvan F
2 Pages
