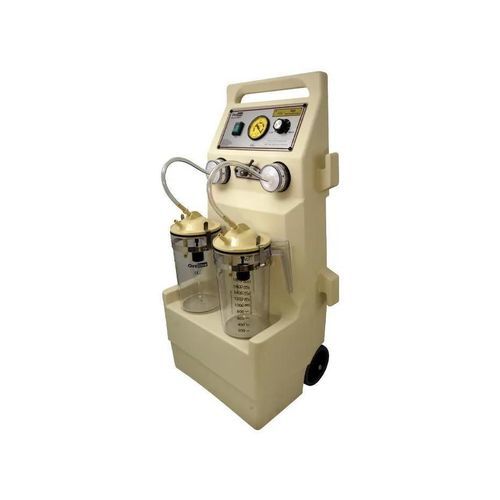

Electric surgical suction pump ESS200

on casters

Product overview
Oxylitre 'elite' range of Mobile Electrical Suction Units deliver a high standard of practical efficient electrical suction solution for Healthcare Services. Oxylitre's range of 'elite' Mobile Electrical Suction Units have a long and exemplary history, simple to use, reliable and extremely functional. The 'elite' Mobile Suction Units are intuitive to use with two pivoting integral wheels and incorporate a tactile trolley handle for ease of movement. These units are reliable and designed to deliver repeatable high performance time after time. They are dependable with minimum maintenance required and come with a long service life and a 7 year warranty.

Key features

• High Vacuum High Flow
• Twin 2 Litre Standard Autoclavable Jar Assembly
• Robust High Impact Resistant Moulded Enclosure
• 2 x 12cm Diameter Integral Wheels for mobility
• Integral Gauge, Dual Scale Dial : kPa + mmHg
• Encapsulated Bacterial/Hydrophobic Filter Disk
• Fine Adjustment Increase/Decrease Vacuum Control
• Illuminated Waterproof ON/OFF Switch
• Vacuum 0 to 760 mmHg
• Flowrate >25Lpm
• 110 volt – 240 volt AC
• 50/60 Hz
• Approximate Size: Height: 825mm x Width: 450mm x Depth: 300mm
• Peak Sound Output at MAX Vacuum from 1m: 60 decibels

Additional information
Includes twin standard 2 litre autoclavable jar assemblies and an encapsulated bacterial/hydrophobic filter disk. Unit incorporates an integral dual-scale gauge (kPa and mmHg), fine vacuum adjustment control and illuminated waterproof power switch. Designed for easy mobility with two pivoting integral wheels and a tactile trolley handle. Minimal maintenance required.

Technical specifications

• Model: ESS200
• Vacuum range: 0 to 760 mmHg
• Flowrate: >25 L/min
• Jar assembly: Twin 2 litre, standard, autoclavable
• Enclosure: Robust, high impact resistant moulded
• Mobility: 2 x 12 cm diameter integral wheels
• Gauge: Integral dual scale dial (kPa + mmHg)
• Filters: Encapsulated bacterial/hydrophobic filter disk
• Controls: Fine vacuum increase/decrease adjustment
• Power switch: Illuminated waterproof ON/OFF switch
• Power: 110–240 V AC
• Frequency: 50/60 Hz
• Approx. dimensions (HxWxD): 825 mm x 450 mm x 300 mm
• Acoustic: Peak sound output at max vacuum (1 m): 60 dB
• Warranty: 7 years
