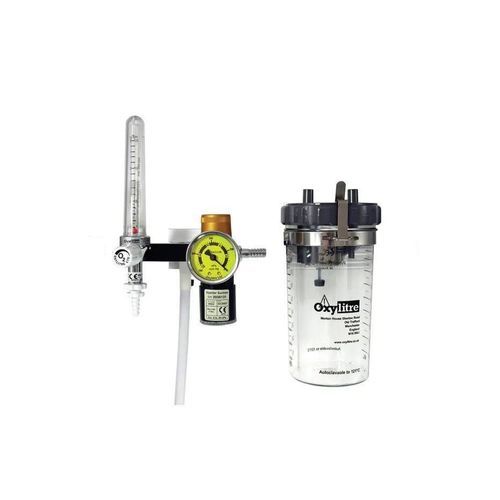

Emergency care suction system S803PI

for patient transferliquidsambulatory

Product Overview
Oxylitre's Injector Suction Systems provide compact, durable suction for clinical environments. The S803PI Patient Transfer Injector Suction System is designed for reliable bedside and transport use, offering consistent high-vacuum performance, intuitive controls and rugged construction for frequent use in hospitals and emergency care.

Service & Warranty
Low-maintenance design with a long operational life. Supplied with a 7-year warranty and supported by service options for clinical equipment maintenance.

Specification

• High vacuum injector suction controller: 0 to >500 mmHg
• Flowmeter: 0–15 L/min
• Back-bar mounting assembly for secure installation
• Rail clamp, 1 metre hose and British Standard probe
• 4 bar positive pressure input

Complete with

• 1000 ml autoclavable suction jar assembly
• Stainless steel cradle and jar-retaining clips, rail mounted
• Standard oxygen regulator
• ISO 407 pin-index cylinder fitting
• Maximum inlet pressure: 138 bar
• Pre-set 4 bar output pressure
• British Standard gas-indexed coloured self-sealing valve

Technical specifications

• Model: S803PI Patient Transfer Injector Suction System Complete (Pin-Index Regulator)
• Vacuum range: 0 to >500 mmHg
• Flowmeter range: 0–15 L/min
• Mounting: back-bar mounting assembly; rail clamp
• Hose: 1 metre hose with British Standard probe
• Input pressure: 4 bar positive pressure input; maximum inlet pressure 138 bar
• Output pressure: pre-set 4 bar
• Jar capacity: 1000 ml, autoclavable
• Accessories included: stainless steel cradle, jar retaining clips, standard oxygen regulator, ISO 407 pin-index cylinder fitting, British Standard gas-indexed coloured self-sealing valve
• Maintenance: minimum maintenance required; long service life
• Warranty: 7 years
