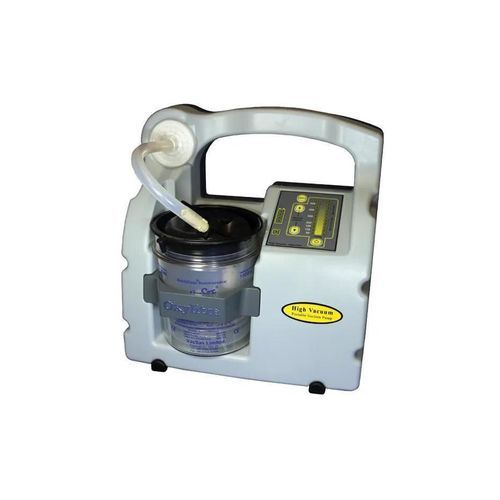

Battery-operated surgical suction pump PSP004

for surgical drainage and debridementportable

Product Overview
Oxylitre's Portable Suction Pumps (PSP series) provide a compact, user-focused suction solution for clinical and emergency settings. The unit features a luminous LED touch control panel, easy-access battery compartment and a streamlined, high-impact moulded enclosure designed for portability and field use.

Key features for clinical use

• High vacuum, high flow performance suitable for airway and surgical suctioning
• Single 1000 ml disposable VACSAX jar with liner to simplify waste handling
• Encapsulated bacterial/hydrophobic filter for infection control
• Instant maximum vacuum override for rapid response
• Battery level and charging indicators for transport and prehospital workflows

Additional product information
Units are engineered for low maintenance and long service life. Designed and field tested to current standards, Oxylitre provides a 7 year warranty for added lifecycle assurance.

Specification

• High Vacuum High Flow
• Single 1000ml Disposable VACSAX Jar & Liner System
• Robust High Impact Resistant Moulded Enclosure
• Encapsulated Bacterial/Hydrophobic Filter Disk
• Luminous Touch Panel Control
• Instant Maximum Vacuum Override Button
• Battery Level/Charging Indicator
• Operating vacuum range: 80 to 500 mmHg
• Flowrate: >25 Lpm
• AC input: 110 volt – 240 volt
• DC input: 12 volt – 28 volt
• 12 volt DC Rechargeable Battery, 4.3 mAh
• Run time: >1 hr 20 min
• Weight: 4.9 Kg
• Approximate Size: 310 mm x 305 mm x 170 mm
• Peak Sound Output at MAX Vacuum from 1 m: 65 decibels
