Oxygen therapy hyperbaric cabin SIT™

inflatablemonoplace

Overview

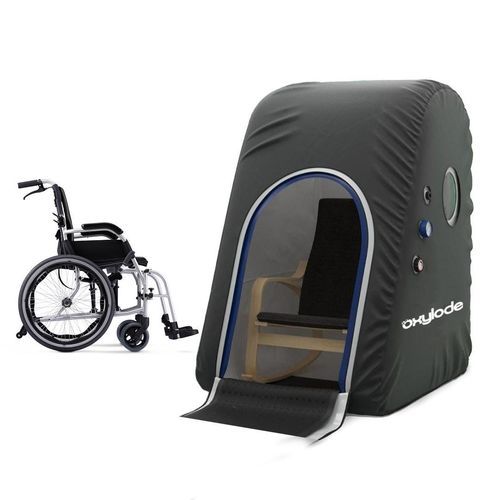

Portable hyperbaric chamber designed for medical use, allowing a wheelchair to be rolled directly into the chamber. Constructed with medical-grade components and integrated systems. Equipped with an upgraded 10 LPM oxygen concentrator delivering 95%–97% oxygen purity and capable of operating at 1.3 ATA (4.3 PSI) for therapeutic sessions.

Features

• Wheelchair-accessible internal space with room to sit and reposition.
• Seams triple heat-welded; no toxic adhesives used.
• Three transparent viewports provide natural light and visual monitoring.
• Designed for single-operator use without assistance.
• CO2 management system prevents buildup and high-efficiency filtration removes micron-level contaminants.
• Proprietary two-zipper center-flap seal offers leak protection and durable closure.
• Internal and external pressure relief valves allow depressurization from inside or outside the chamber.
• Emergency depressurization valve for accelerated pressure reduction.
• Delivers controlled oxygen sessions at 1.3 ATA (4.3 PSI).

Specifications

• Height: 160 cm
• Width: 100 cm
• Length: 140 cm
• Weight: 14 kg
• Included: Air compressor
• Included: O2 concentrator (10 LPM)
• Included: Air cooler

Technical specifications

• Model: SIT™
• Dimensions (H x W x L): 160 cm x 100 cm x 140 cm
• Weight: 14 kg
• Oxygen concentrator: upgraded 10 LPM
• Oxygen purity: 95%–97%
• Operational pressure: 1.3 ATA (delivers compressed oxygen at 1.3 ATA)
• Pressure equivalence: 4.3 PSI session capability
• Components included: air compressor, O2 concentrator, air cooler
• Construction: medical-grade components; seams triple heat-welded (no toxic adhesives)
• Access: supports rolling a wheelchair directly into the chamber
• Viewports: 3 transparent windows for monitoring and ambient light
• Safety: internal and external pressure relief valves; emergency depressurization valve
• Comfort and safety systems: proprietary two-zipper center-flap seal with leak protection; CO2 management and micron-level filtration
• Operability: operable by a single user without assistance
