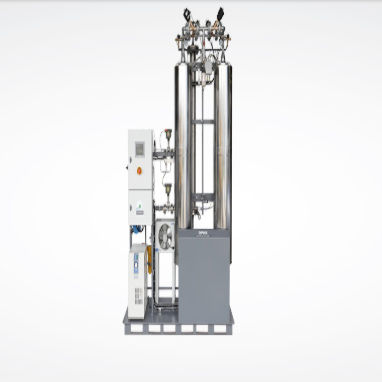

Nitrogen generator OPAS series
oxygenCO2medical

nitrogen generator
nitrogen generator
nitrogen generator
nitrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
nitrogen, oxygen, CO2
Applications
medical
Configuration
floor-standing
Technology
PSA
Output

Min.: 50 m³/h
(1,765.7333 ft³/h)

Max.: 1,000 m³/h
(35,314.6667 ft³/h)

Description

Oxymat Purifier Action System (OPAS) is the add-on technology, making the most of any Oxymat nitrogen generator. OPAS is the true add-on technology for nitrogen applications requiring 1-100 ppm. OPAS can easily be integrated with already existing nitrogen generation systems resulting in high purity nitrogen at minimum costs. This process, purifying nitrogen from 99.5% up to 99.9999% costs as little as 0.39 kW/h produces nitrogen and makes Oxymat OPAS the environment a friendly choice. Unique OPAS design features include: High performance top quality solutions Small footprint – large capacity – high purity Top nitrogen quality with minimum space and energy requirement Low energy consumption (from 0.39 kW/m3) Low CO2 emission Heavy-duty construction designed for rough conditions and industrial use High quality & durable components 3D design Design and customization, to meet any specification Trouble-free installation High quality Touch Screen Control Unit Remote Control Access Product Range: Notes: All versions will use 5 % feed gas as scrubbing gas for the heated adsorbtion dryer. Example: Needed capacity 1000 m3/h means that you need feed gas of 1050 Nm3/h. Purity of feed nitrogen 99.5- 99.9 %. Why Oxymat PSA generators are the wise choice? At Oxymat, we only see challenges - not problems! No matter your need or application we can provide state-of-theart design to meet your requirements. Our wide range of standard generator systems supplies: • Oxygen from 0,6 to 2000 m3/h purities up to 95% • Nitrogen from 0,3 to 10000 m3/h with purities up to 99,9999% Oxymat Purifier Action System – an Add-on technology, making the most of any Nitrogen generator.
