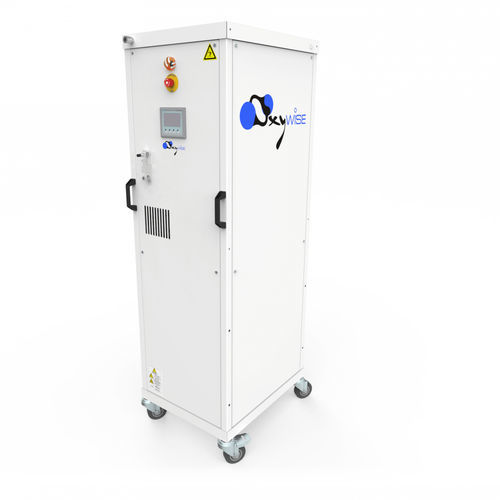

Veterinary oxygen generator Oxyport

on casterscompactPSA

Produce gaseous oxygen from compressed air on site and offer a cost-effective, reliable and safe alternative to traditional oxygen gas supplies such as cylinders or cryogenic liquid. Design is made for round the clock 24/7 operation. Each generator is equipped with automatic start&stop function, enabling the generator to start and stop automatically according to the consumption. OXYPORT generator is the most compact, convenient and reliable source of oxygen. PSA Technology PSA Oxygen Generator consists of two columns filled with a zeolite molecular sieve. Pre-treated compressed air enters the active column and flows up through the zeolite. Oxygen and other unwanted gases are adsorbed while the nitrogen passes through. The active column then becomes fully pressurized. When this pressure is released, the column becomes inactive and completely regenerates during the depressurization. In order to secure a steady flow of oxygen each generator is built from two columns; one is active while the other is inactive. At the end of each columns cycle, they switch roles. Standard features Portable - plug & play Control system based on SIEMENS with 4" colour touch screen Built in purity analyzer for continuous monitoring Compact and complete solution including oil-free compressor Low operating costs Acrylic flow regulator
