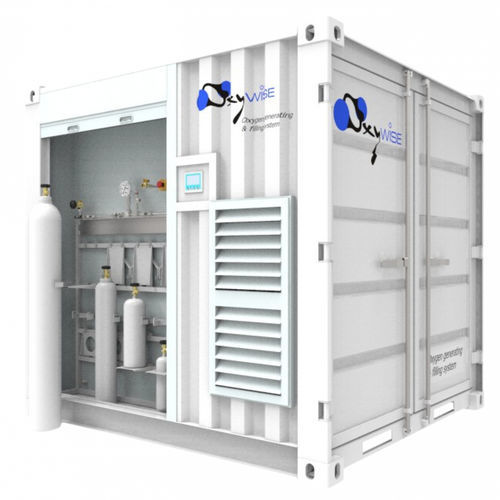

Oxygen cylinder filling system MOFS 4

oxygen cylinder filling system
oxygen cylinder filling system
oxygen cylinder filling system
oxygen cylinder filling system
oxygen cylinder filling system
Add to favorites
Compare this product


oxygen, medical


Produce gaseous oxygen from compressed air on site and offer a cost-effective, reliable and safe alternative to traditional oxygen gas supplies such as cylinders or cryogenic liquid. Our design is made for round the clock 24/7 operation. Each generator is equipped with automatic start&stop function, enabling the generator to start and stop automatically according to the consumption. PSA Technology PSA Oxygen Generator consists of two columns filled with a zeolite molecular sieve. Pre-treated compressed air enters the active column and flows up through the zeolite. Oxygen and other unwanted gases are adsorbed while the nitrogen passes through. The active column then becomes fully pressurized. When this pressure is released, the column becomes inactive and completely regenerates during the depressurization. In order to secure a steady flow of oxygen each generator is built from two columns; one is active while the other is inactive. At the end of each columns cycle, they switch roles. Standard features Transportable (pass for fork-lift and bolt-on ISO corners) Turnkey, plug&play solution Designed for outdoors - the container is an excellent protection against rain and sun Automatic start and stop operation Available oxygen outlet at pressure 4barG; Oxygen cylinders are filled at 150barG (200barG) Oxygen purity 95% +/-1% Optional features Sequential start/stop system – one button operation Surveillance system – monitors oxygen concentration of the ambient air in the container CSC approval – certification for sea transport SIBIRIA – nordic version for temperatures down to -50°C Automatic fire detection system Audio/visual alarm
