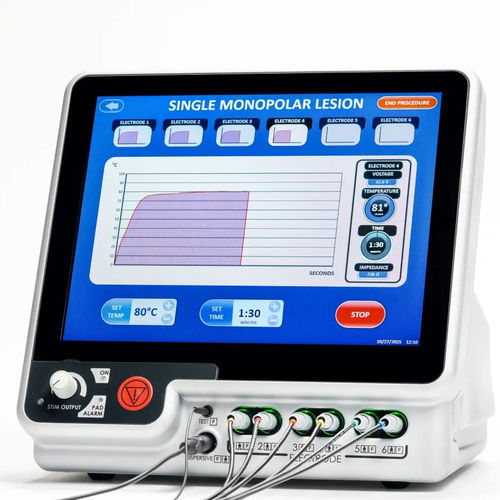

Pain management radiofrequency generator APEX 6

thermal ablation

Overview
The APEX 6 is a 6‑channel desktop radiofrequency (RF) generator designed for interventional pain management. It delivers continuous or pulsed RF output at 460 kHz and supports monopolar (single/double) and bipolar electrode modes for lesioning or pulsed RF therapy of neural tissue. The system includes sensory and motor stimulation functions to assist and refine electrode placement. Radiofrequency ablation (RFA) is presented as a targeted thermal ablation technique that can provide significant pain relief for up to 12 months.

Features & Advantages

• Lesion / Pulsed‑RF Mode - Three selectable modes:
  • Single Monopolar Mode - One electrode active at a time; the APEX 6 advances to the next electrode after completion of each lesion/PRF cycle.
  • Double Monopolar Mode - Two electrodes active simultaneously; sequenced progression when lesions/PRF complete.
  • Bipolar Lesion/Pulsed Mode - Lesioning or pulsed‑RF between two electrodes for localized ablation.
• 6‑Channel RF Capability - Connect up to six electrodes simultaneously to enable parallel lesioning or paired sequence pulsed‑RF, reducing overall procedure time.
• Full‑Width Touch Display - Large touchscreen across the monitor for clear visualization of parameters and settings.
• Emergency Stop Button - Immediate interruption of RF output in emergency situations.
• Rotary Control-Based Parameter Adjustment - Manual rotary control for precise adjustment of stimulation and RF parameters.
• Real‑Time Temperature Monitoring - Continuous temperature measurement during RF delivery.
• Digital Notetaking - Electronic recording of procedural data directly on the system to support documentation and data extraction.

Ordering information
Item description | Item no. | Purchase Unit
APEX 6 RF Generator | 1151-90-10 | 1

Technical specifications

• RF output frequency: 460 kHz (continuous or pulsed RF)
• Electrode modes: monopolar (single/double) and bipolar
• Channels: up to 6 simultaneous electrode connections (6‑channel generator)
• Stimulation: sensory and motor stimulation functions for electrode placement
• Display: large full‑width touchscreen for parameter visualization
• Controls: rotary control for parameter adjustment
• Safety: emergency stop button to immediately interrupt RF output
• Monitoring: real‑time temperature monitoring during RF delivery
• Documentation: electronic/digital recording of procedural data at the system
• Ordering: APEX 6 RF Generator — Item no. 1151-90-10 — Purchase unit: 1
