Compact organ bath 76-00xx series
for scientific researchtissueheating

compact organ bath
compact organ bath
compact organ bath
compact organ bath
compact organ bath
Add to favorites
Compare this product


for scientific research, tissue
Temperature control
modular, compact
Other characteristics
Temperature range

50 °C (122 °F)


Min.: 5 ml (0.2 US fl oz)

Max.: 50 ml (1.7 US fl oz)

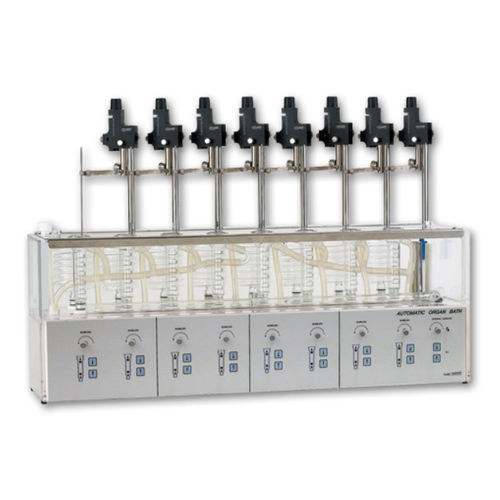

Panlab provides complete hardware solutions and associated software for isolated tissues studies from simple, manual systems to automated, computer-controlled systems. The Panlab Compact Organ Baths have been designed and developed to satisfy the requirements of investigators by offering advanced characteristics that render them suitable for the in-vitro study of tissue behavior. Due to their compact design minimum bench space is required. The modular design allows up to eight individually mounted tissues to be studied simultaneously and independently per system. Several models are available, from one up to eight chambers. All of them are supplied with an external heating control unit, transducer' stands & micropositioners and tissue holders. The main Perspex reservoir houses the heater system, the chambers and coils, all submerged in thermostatically controlled water. Each vessel is filled and emptied by means of a three-way tap (Manual Series) or by electrically-operated valves (Automatic Series) which, besides the possibility of manual activation by means of frontal pushbuttons, can also be remotely controlled by a Timer or Programmer (Software).
