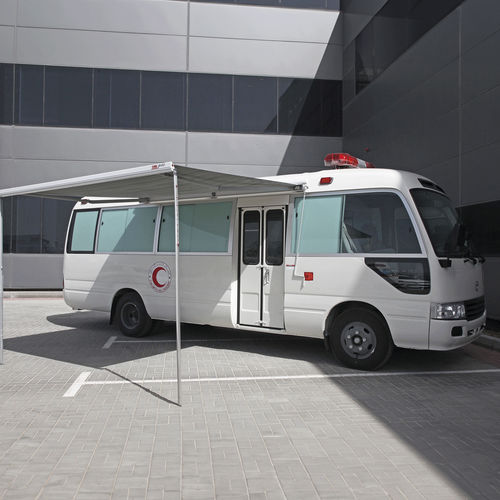

laboratory mobile health vehicle / bus
TOYOTA COASTER

• Applications:

  laboratory

• Configuration:

  bus

Vehicle Specifications

TOYOTA COASTER HIGH ROOF
COASTER DSL
DIMENSIONS Lx Wx H mm 6990 X 2080 X 2635
WHEEL BASE mm 3935
KERB WEIGHT (Kgs) 3515-3600
DISPLACEMENT cc 4164
HP (SAE Net) / RPM 129
TORQUE (SAE Net) KgM /RPM 29
TYPE 6-CYL
FUEL SYSTEM FUEL INJ.
FUEL TYPE DIESEL
T/M 5-SPEED M/T
SAFETY ABS + Airbags (D+P)
SUSPENSION FRONT DOUBLE W/B
REAR LEAF SPRING
MODEL YEAR: 2017
Note: with Side Door



Mobile Health Unit Specifications

Flooring: Floor in marine grade plywood bonded with heavy duty and non-slip vinyl sheet in Navy blue color
Internal Panels: All interior card boards panel at the rear side compartments to be replaced with
Aluminum powder coated panels.
Partition behind Driver and reception area : GRP coated partition (bulkhead) with sliding door
between driver and patient compartment
Reception Area: One fully rotatable, self-retracting polyurethane cushion seat fixed for nurse
in reception area with One Suspended to Wall Foldable Examination Table
and one cushion seat for patient. Navy blue color.
Partition for Patient Screening Area: GRP coated partition (bulkhead) with sliding door between
reception and examination area.
“Emergency Medical Technician (EMT) Seat: – One fully rotatable, self-retracting medical seat
for physician in Examination with one examination table beside patient bed.
Patient Bed: – Standard size examination bed with under-counter storage.
To be installed opposite side of the medical cabinet.
