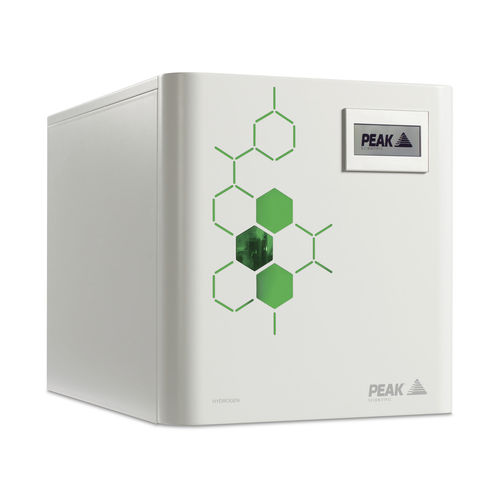

Hydrogen generator Precision 100
medicalfor gas chromatographycompact

hydrogen generator
hydrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
hydrogen
Applications
for gas chromatography, medical
Configuration
compact
Technology
PEM
Output

0.1 l/min
(0.0264 us gal/min)

Output pressure

6.9 bar
(100.08 psi)

Gas purity

99.9995 %

Description

The Precision Hydrogen Standard generators are designed to provide the gas needed for GC detectors requiring hydrogen fuel gas, such as FID whilst the Precision Hydrogen Trace generators are capable of supplying GC carrier gas as well as detector gases for multiple GCs. One generator is capable of supplying multiple detectors, and there are various flow rates available to suit individual laboratory needs. These generators utilize a Proton Exchange Membrane (PEM) to create the hydrogen gas from deionized water and a desiccant filtration stage is used to dry the gas. The Precision Hydrogen generators are also suitable for providing collision gas for ICP-MS. Precision Hydrogen gas generators come with various safety features as standard, giving you complete peace of mind in the laboratory and are a far safer, dependable and convenient alternative to cylinders. Features Suitable for GC detector gas Creates hydrogen on demand, minimal storage of hydrogen in the system Low maintenance and minimal running costs over product lifetime Internal leak detection with automatic shutdown Automatic loading pump as standard Simple maintenance, limited to replacing de-ionizer cartridge and silica gel Site & Installation Gas Outlets Fitting: 1 x 1/8” Swagelok compression fitting Water Purity Requirements: ASTM Type II ( 1MΩ) Water Consumption: Up to 0.12 L/Day Start Up Time: 180 m Power Consumption: 309-422 Watts Voltage: 100-230 V Frequency: 50/60 Hz Current: 6 Amps Heat output: 1000 Max Operating Temp: 35°C / 95°F Accreditations: CSA, CE, FCC
